Home >> Genesis >> 2024 >> G70 2.5T, AWD >> Repair and Diagnosis >> Restraints >> Air Bag, SRS >> Supplemental Restraint System Control Module (SRSCM) And Sensors >> Components And Components Location >> Components >> [Sedan]

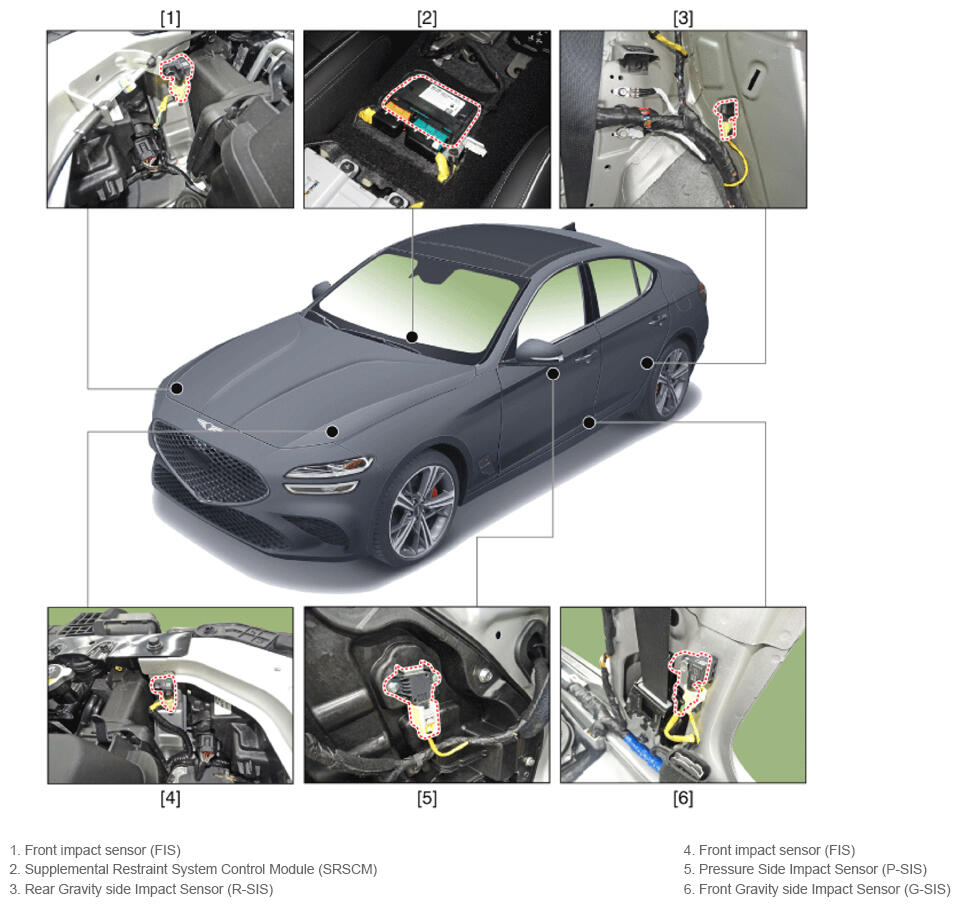

Components And Components Location: Components: [Sedan]

G16831091

Courtesy of HYUNDAI MOTOR AMERICA
