Home >> Genesis >> 2024 >> G70 2.5T, AWD >> Repair and Diagnosis >> Engine Performance >> System >> Engine Control System Diagnosis - 2.5L (7 Of 7) >> DTC U0123-00: Lost Communication With Yaw Rate Sensor Module >> Troubleshooting >> Diagnostic Flowchart

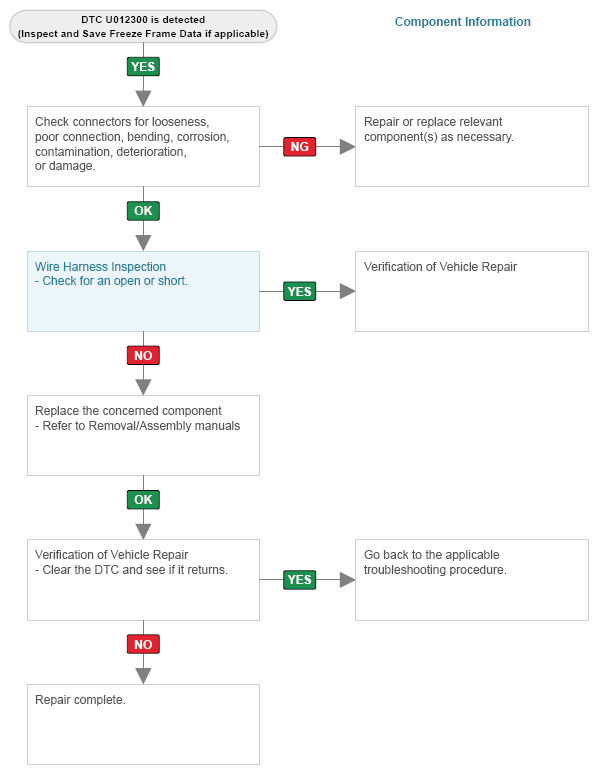

Diagnostic Flowchart

G16826100Courtesy of HYUNDAI MOTOR AMERICA
