Home >> Genesis >> 2024 >> G70 2.5T, AWD >> Repair and Diagnosis >> Engine Performance >> System >> Engine Control System Diagnosis - 2.5L (7 Of 7) >> DTC P2BEC-F0: Fuel Control System 'A' Too Lean Bank 1 >> DTC Information And Inspection >> Monitor Current Data >> Current Data Inspection

Current Data Inspection

  1. Ignition "OFF".
  2. Connect GDS to Data Link Connector (DLC).
  3. Ignition "ON" & Engine "ON".
  4. Monitor following parameters in "Current Data" with GDS.

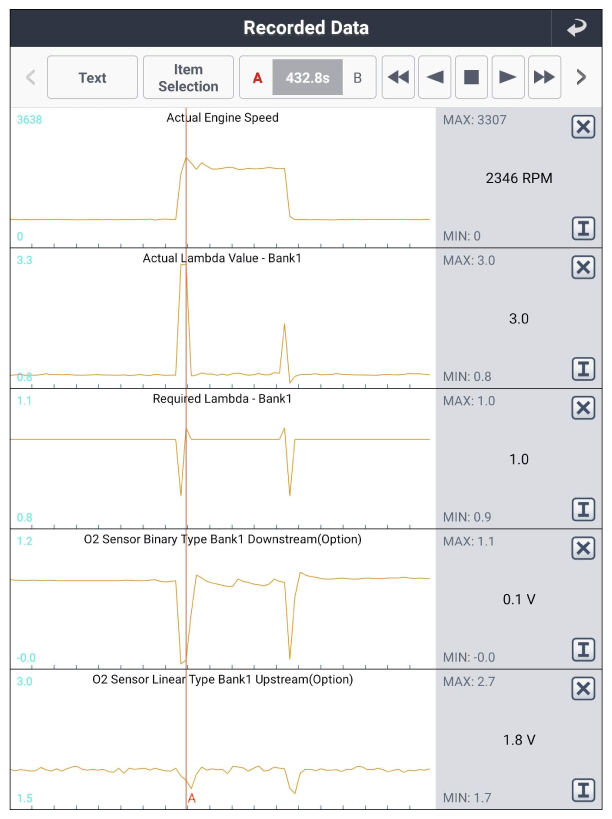

    Specification  : Refer to figure below

G16826055Courtesy of HYUNDAI MOTOR AMERICA
