Home >> Genesis >> 2024 >> G70 2.5T, AWD >> Repair and Diagnosis >> Engine Performance >> System >> Engine Control System Diagnosis - 2.5L (7 Of 7) >> DTC P2B95-2F: Cold Start Injection Pulse Performance >> Troubleshooting >> Diagnostic Flowchart

Diagnostic Flowchart

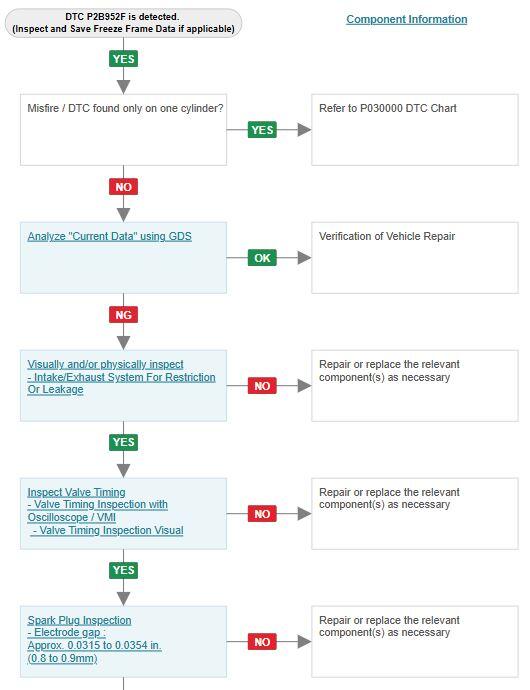

Fig 1: P2B95-2F (1 Of 2)
G16826052Courtesy of HYUNDAI MOTOR AMERICA

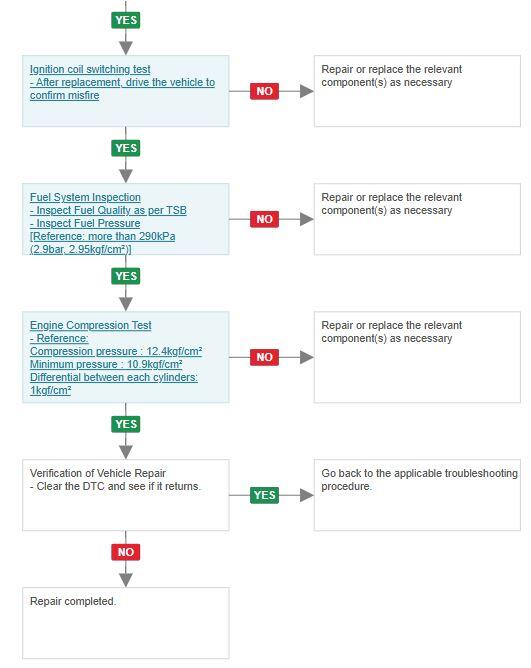

Fig 2: P2B95-2F (2 Of 2)
G00678263Courtesy of HYUNDAI MOTOR AMERICA
