Monitor Current Data

Item	Normal Value	Prerequisite Condition			Probe (+)	Probe (-)

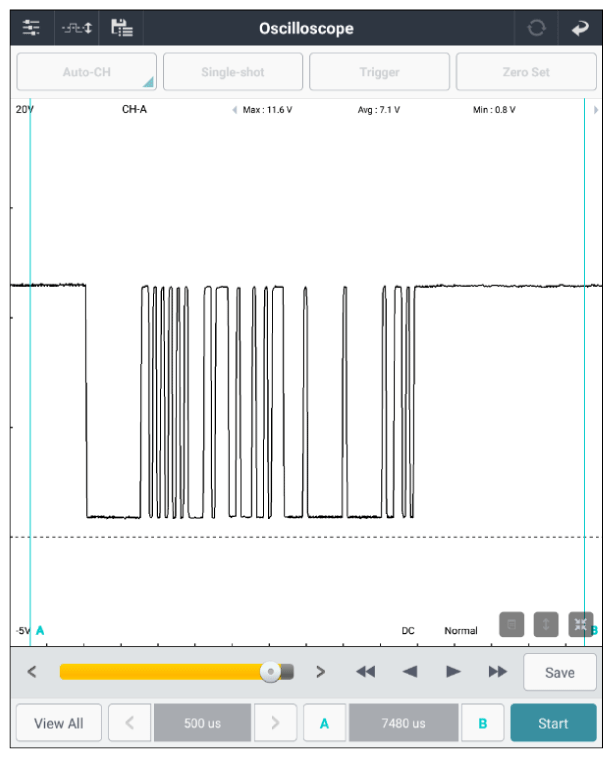

LIN circuit signal waveform (IBU)	Refer to below figure	Courtesy of HYUNDAI MOTOR AMERICA	Courtesy of HYUNDAI MOTOR AMERICA	Courtesy of HYUNDAI MOTOR AMERICA	LIN circuit terminal (IBU)	Chassis ground

Courtesy of HYUNDAI MOTOR AMERICA
