Diagnostic Flowchart

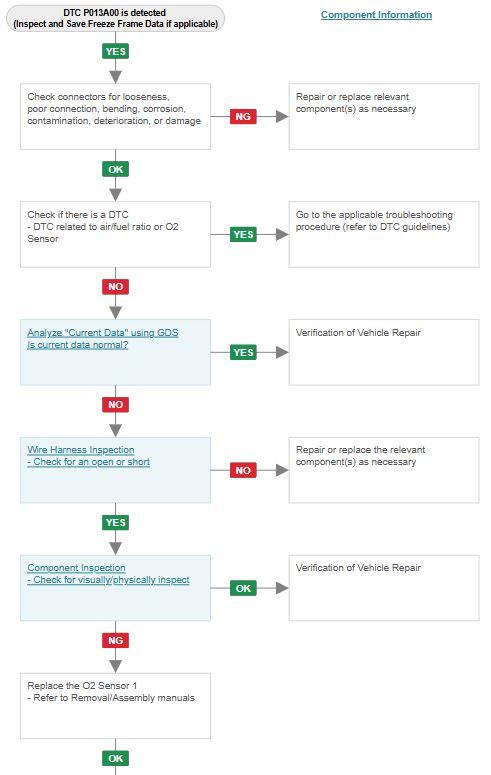

Fig 1: P013A-00 (1 Of 2)
G16825271Courtesy of HYUNDAI MOTOR AMERICA
Fig 2: P013A-00 (2 Of 2)
G00678222Courtesy of HYUNDAI MOTOR AMERICA
