Engine Control System Diagnosis - 2.5L (1 Of 7)
>>
DTC P00AF-F1: Turbocharger/Supercharger Boost Control 'A' Module Performance
>>
Troubleshooting
>>
Diagnostic Flowchart
Diagnostic Flowchart

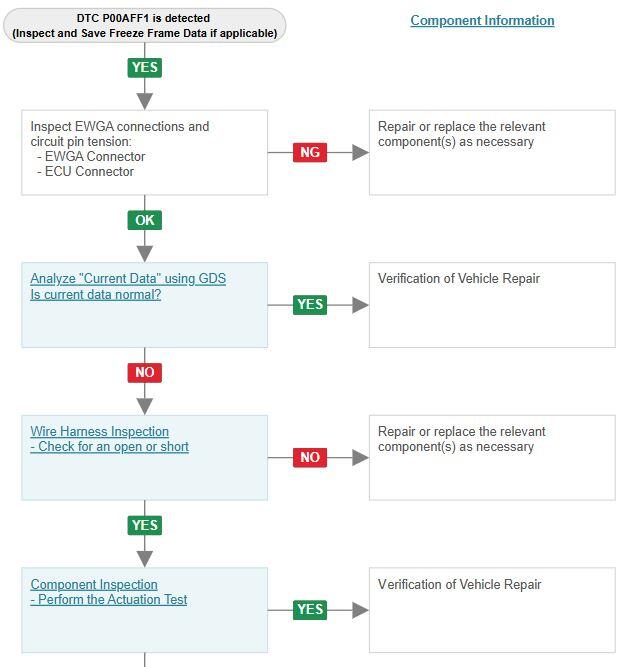

Fig 1: P00AF-F1 (1 Of 2)
Courtesy of HYUNDAI MOTOR AMERICA

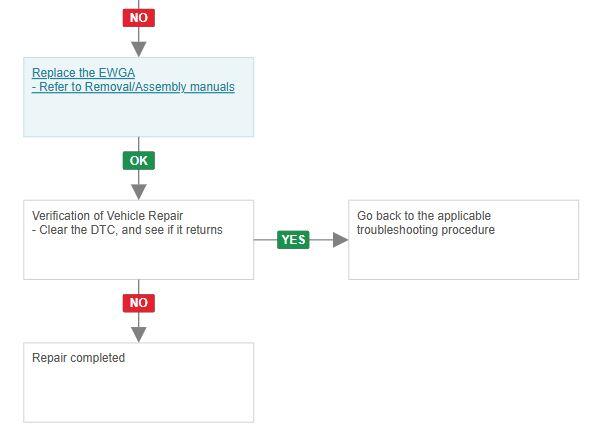

Fig 2: P00AF-F1 (2 Of 2)
Courtesy of HYUNDAI MOTOR AMERICA
Courtesy of HYUNDAI MOTOR AMERICA
Courtesy of HYUNDAI MOTOR AMERICA
