Repair Procedures: Replacement

Information

• When removing with a flat-tip screwdriver or remover, wrap protective tape around the tools to prevent damage to components.
• Use a plastic panel removal tool to remove interior trim pieces without marring the surface.
• Take care not to bend or scratch the trim and panels.

1. Remove the front seat assembly.

   (Refer to Front Seat - "FRONT SEAT ASSEMBLY ")

2. Remove the front seat shield outer cover.

   (Refer to Front Seat - "FRONT SEAT SHIELD OUTER COVER ")

3. Remove the front seat shield inner cover.

   (Refer to Front Seat - "FRONT SEAT SHIELD INNER COVER ")

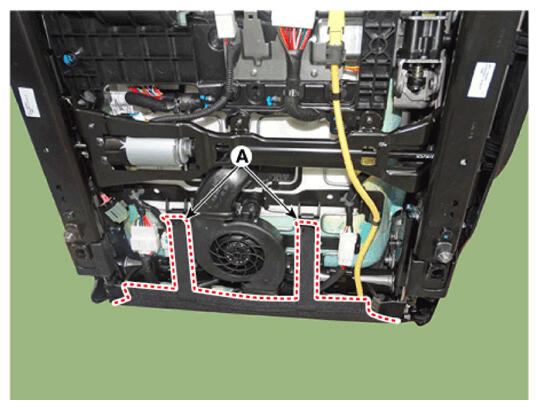

4. Remove the front seat lower protector (A).

   Courtesy of HYUNDAI MOTOR AMERICA

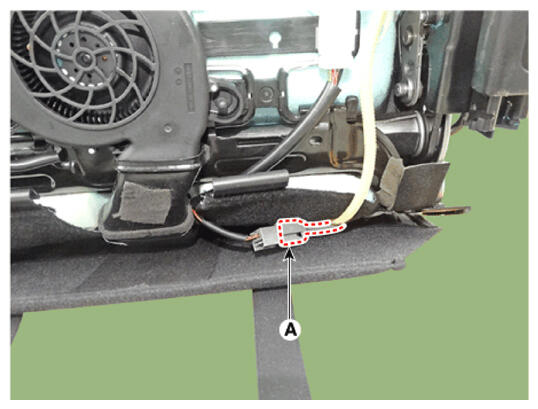

5. Disconnect the connectors (A).

   Courtesy of HYUNDAI MOTOR AMERICA

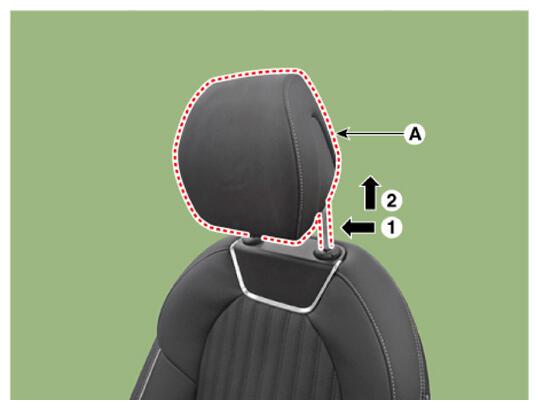

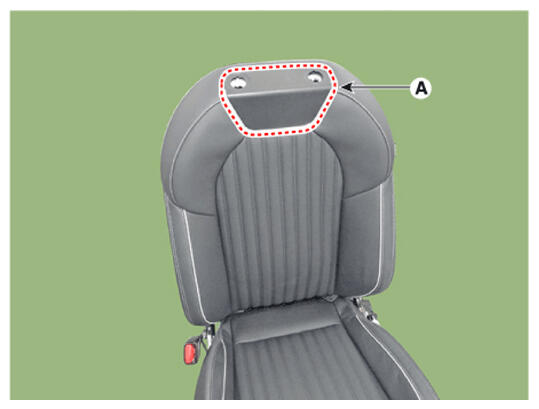

6. Push the lock pin, remove the front seat headrest (A).

   Courtesy of HYUNDAI MOTOR AMERICA

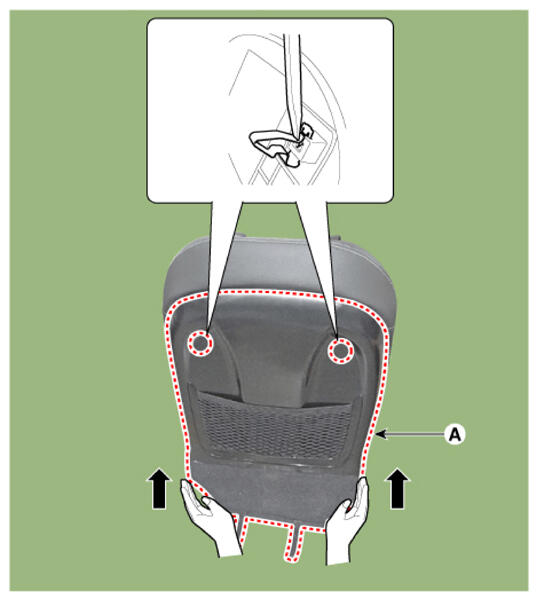

7. Remove the front seat back board (A).
   1. Separate the upper back cover by pushing the lock pin in the direction of the arrow.
   2. Remove the front seat back cover by lifting in the direction.

      Courtesy of HYUNDAI MOTOR AMERICA

8. After loosening the mounting screws, remove the front seat back duct (A).

   Courtesy of HYUNDAI MOTOR AMERICA

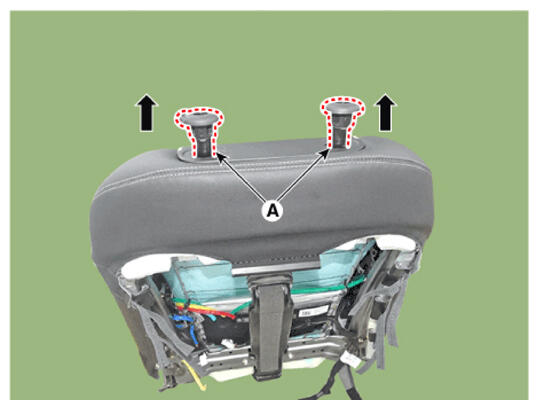

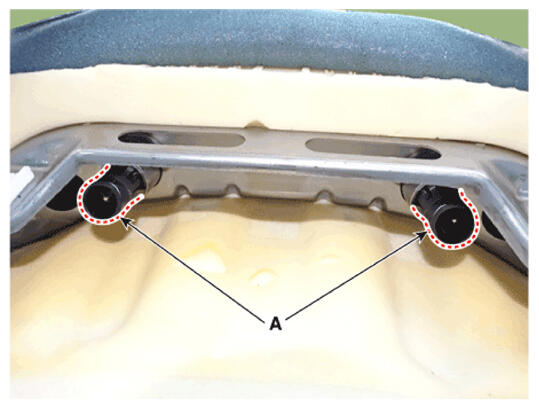

9. Turn the front seat back cover inside out. Then pull out the headrest guides (A) while pinching both side of the lower part of the guides, and remove them.

   Courtesy of HYUNDAI MOTOR AMERICA

   Courtesy of HYUNDAI MOTOR AMERICA

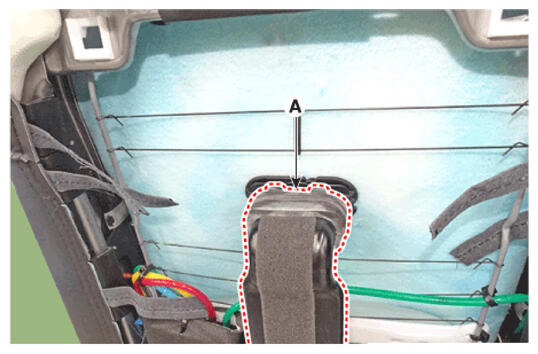

10. Remove the protector (A) from the front seat back frame.

    Courtesy of HYUNDAI MOTOR AMERICA

11. Using a screwdriver or remover, remove the front seat guide cover (A).

    Courtesy of HYUNDAI MOTOR AMERICA

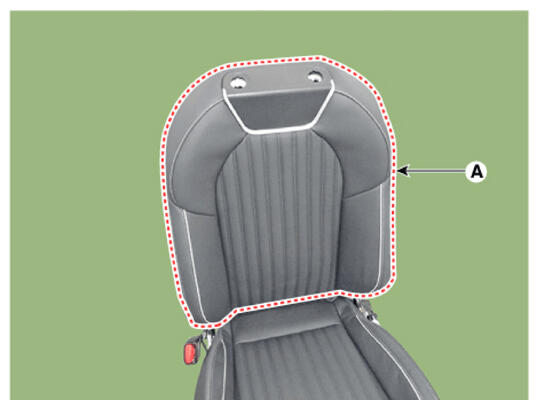

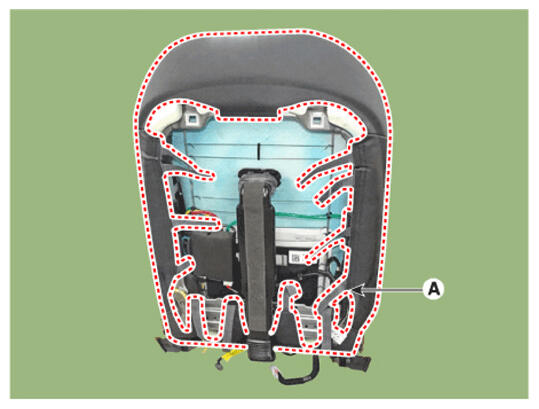

12. Remove the front seat back cover assembly (A) from the front seat back frame.

    Courtesy of HYUNDAI MOTOR AMERICA

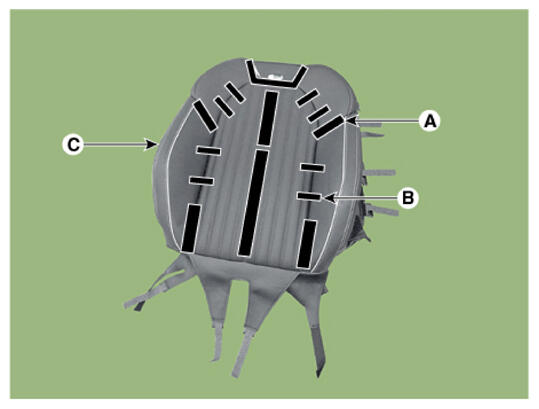

13. After removing the Velcro tape (A) and hog-ring clips (B) inside the front seat back cover, remove the seat back cover (C).
    CAUTION:

    • Be careful not to allow the sponge insert wire to separated in its place.

    Courtesy of HYUNDAI MOTOR AMERICA

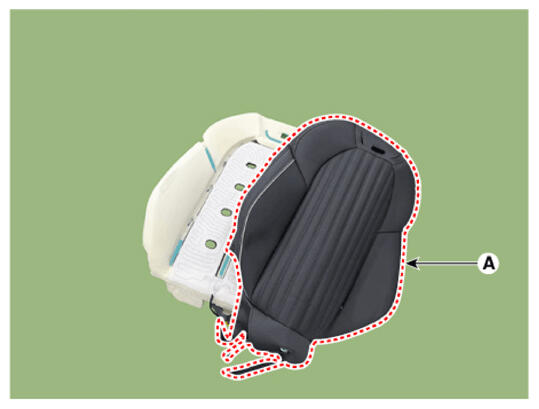

14. Remove the front seat back cover (A) from the front seat back pad.

    Courtesy of HYUNDAI MOTOR AMERICA

15. To install, reverse the removal procedure.

    Information

    • Make sure that the connectors are connected completely
    • Replace any damaged clips (or pin-type retainers).

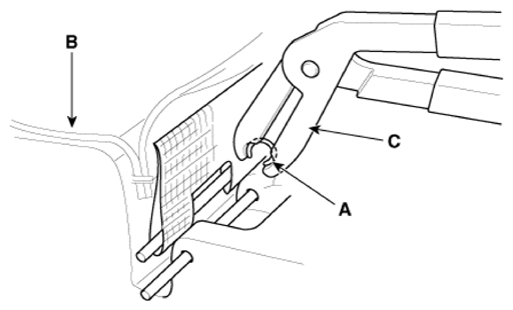

    • To prevent wrinkles, make sure that the cover (B) is stretched evenly before connecting the hog-ring clips (A).
    • Replace the hog-ring clips with new ones using special tool (C) (09880-4F000).

      Courtesy of HYUNDAI MOTOR AMERICA
