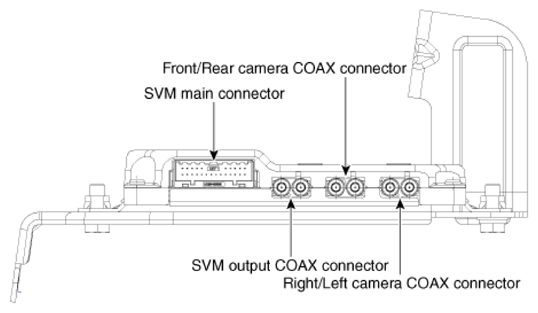

Components And Components Location: Components
| Connector | Pin NO | Description | Pin NO | Description |
|---|---|---|---|---|
| 1 | Battery (+) | 13 | ACC | |
| 2 | - | 14 | SVM switch LED indicator signal | |
| 3 | - | 15 | - | |
| 4 | IGN1 | 16 | - | |
| 5 | SVM switch signal | 17 | - | |
| 6 | - | 18 | - | |
| 7 | - | 19 | - | |
| 3 | - | 20 | - | |
| 9 | - | 21 | - | |
| 10 | C-CAN (High) | 22 | - | |
| 11 | - | 23 | - | |
| 12 | Ground | 24 | C-CAN (Low) |
| SVM Output COAX Connector | Pin NO | Description | Pin NO | Description |
|---|---|---|---|---|
| 1 | Vout_Cluster | 2 | Vout_AVN |
| Front/Rear Camera COAX Connector | Pin NO | Description | Pin NO | Description |
|---|---|---|---|---|
| 1 | Rear Signal + Power | 2 | Front Signal + Power |
| LH/RH Camera COAX Connector | Pin NO | Description | Pin NO | Description |
|---|---|---|---|---|
| 1 | RH Signal + Power | 2 | LH Signal + Power |
