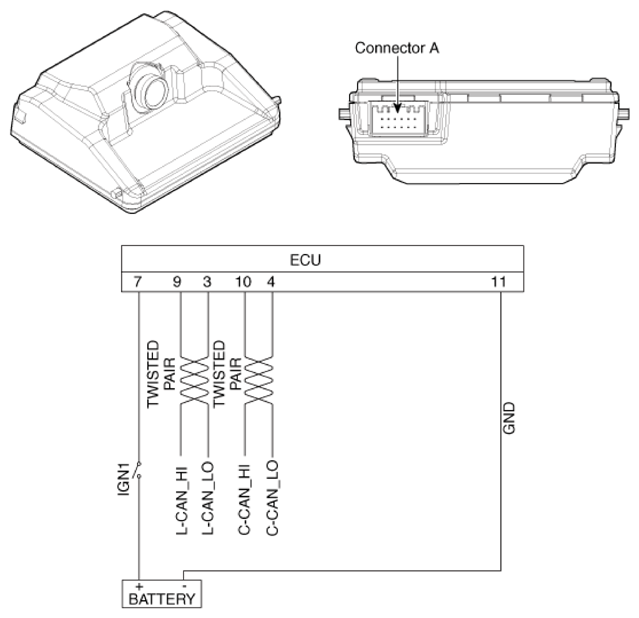

Circuit Diagram

G16832991Courtesy of HYUNDAI MOTOR AMERICA
Connector A  Pin Description Pin Description
G16832992Courtesy of HYUNDAI MOTOR AMERICA
 1 - 7 IGN 1
2 - 8 -
3 L-CAN (Low) 9 L-CAN (High)
4 C-CAN (Low) 10 C-CAN (High)
5 - 11 Ground
6 - 12 -
