Repair Procedures: Removal

  1. Disconnect the negative (-) battery terminal.
  2. Remove the steering wheel.

    (Refer to Steering System - "STEERING WHEEL ")

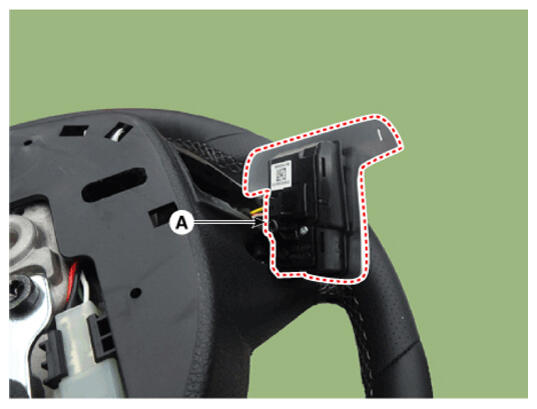

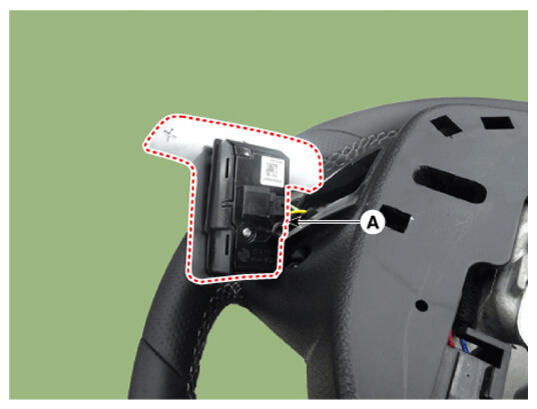

  3. Remove the paddle shift lever and connector (A).
    G16833049Courtesy of HYUNDAI MOTOR AMERICA
    G16833050Courtesy of HYUNDAI MOTOR AMERICA

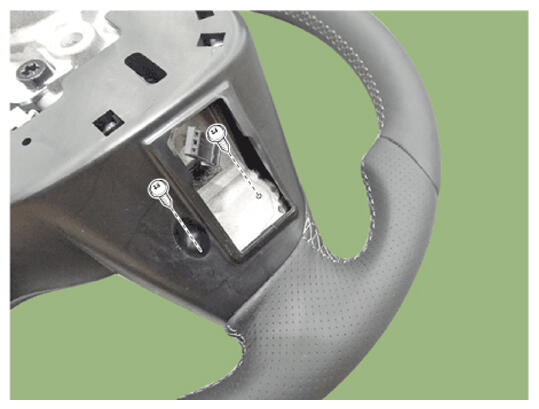

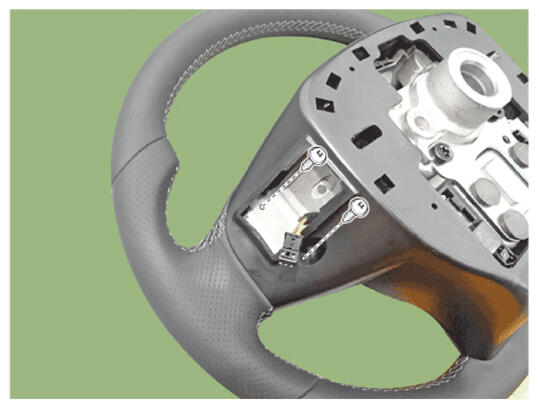

  4. Loosen steering wheel switch mounting screws.

    [Rear]

    G16833051Courtesy of HYUNDAI MOTOR AMERICA
    G16833052Courtesy of HYUNDAI MOTOR AMERICA

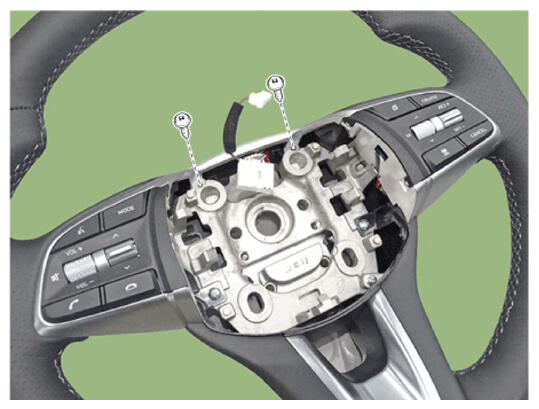

    [Front]

    G16833053Courtesy of HYUNDAI MOTOR AMERICA

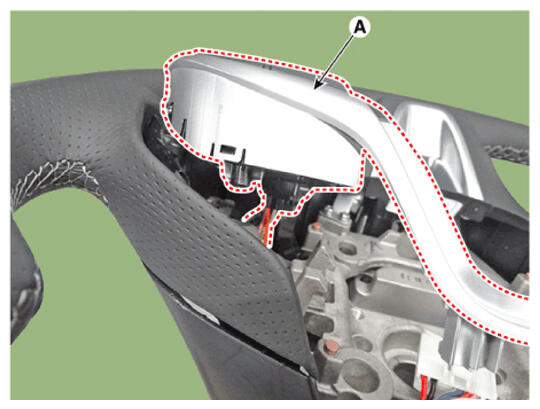

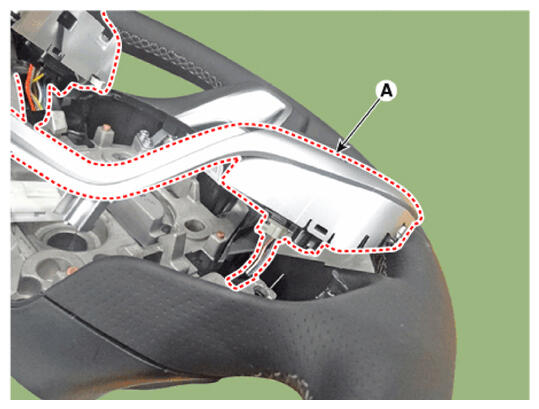

  5. Disconnect switch connectors and then remove the steering wheel switch (A).
    G16833054Courtesy of HYUNDAI MOTOR AMERICA
    G16833055Courtesy of HYUNDAI MOTOR AMERICA
