OCS Reset Procedure
- Ignition "OFF", connect GDS.
- Ignition "ON" & Engine "OFF", select S/W Management and "Car model".
- Select OCS and "Body Sensor Reset".

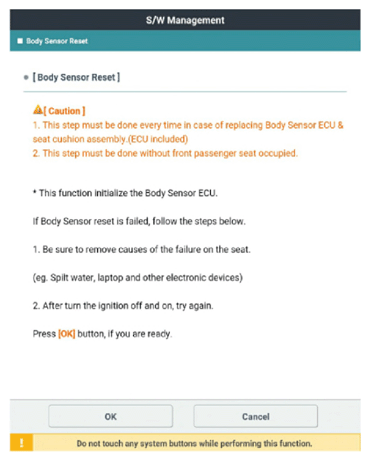

- Perform the "Body sensor reset" procedure according to the GDS screen message.
CAUTION:
- After initializing the OCS sensor unit, erase DTC regarding the SRSCM and the OCS sensor unit.
NOTE:
- Refer to the DTC INDEX for details on incidental DTC.
| DTC Code | Code Name | Description |
|---|---|---|
| B176300 | Fault in OCS unit | Not initialized, faulty |
| OCS sensor unit damaged | ||
| B176400 | Fault in OCS | OCS sensor unit, sensor connector not connected |
| OCS sensor damaged | ||
| B17672F | Algorithm cut-off | Failure due to moisture |
| Failure due to electronic devices | ||
| B111117 | Ignition switch current high | Ignition switch current high |
| B111216 | Ignition switch current low | Ignition switch current low |
| B160388 | CAN communication OFF | Failure in CAN communication line |
| B169787 | Communication failure in SRSCM | Failure in CAN communication |
