Recirculation valve (RCV) solenoid

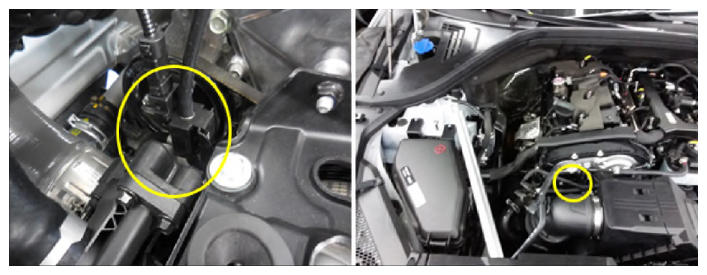

G14754806Courtesy of HYUNDAI MOTOR AMERICA

Installed on the cooling pan motor top, the Recirculation Valve (RCV) Control Solenoid Valve operates the RCV actuator to control the bypass passage of the turbocharger compressor.

When the throttle valve is closed during engine running [Tip-out], crash noise will be generated from the impeller due to rapid surge in boost pressure. So, in this case, in order to prevent this phenomenon, ECM maintains the appropriate boost pressure by opening the bypass passage.
