Checking Stationary Steering Effort

  1. Position the vehicle on a level surface and place the steering wheel in the straight ahead position.

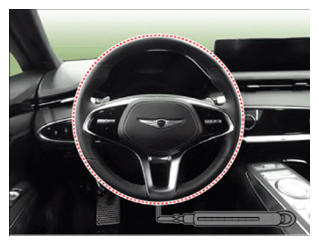

  2. Attach a spring scale to the steering wheel. With the idle RPM, pull the scale and read it as soon as the tires begin to turn.

    Standard value:  3.0 kgf

    G14753692Courtesy of HYUNDAI MOTOR AMERICA
