Heated Oxygen Sensor (HO2S)
>>
Components And Components Location
>>
Heated Oxygen Sensor (HO2S) [Bank 1/Sensor 2]
Heated Oxygen Sensor (HO2S) [Bank 1/Sensor 2]

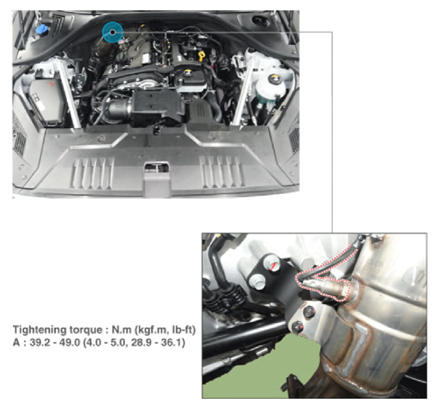

Fig 1: Heated Oxygen Sensor (Bank 1/Sensor 2) Components Location With Torque Specification
Courtesy of HYUNDAI MOTOR AMERICA
Courtesy of HYUNDAI MOTOR AMERICA
