Home >> Genesis >> 2023 >> GV70 2.5T Advanced >> Repair and Diagnosis >> Engine Mechanical >> Intake And Exhaust System - 2.5L >> Intake Manifold >> Components And Components Location >> Components

Components And Components Location: Components

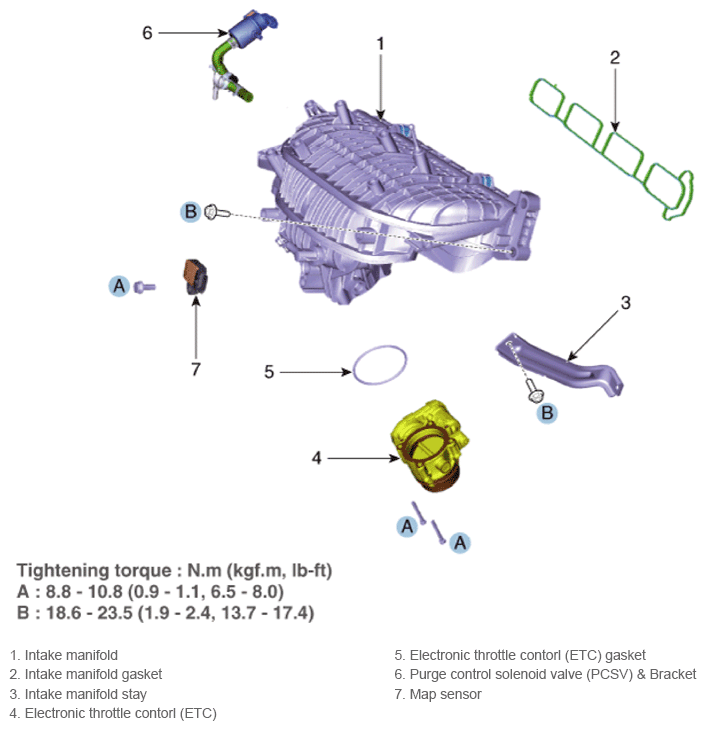

Fig 1: Intake Manifold Components Location With Torque Specifications

G14752783

Courtesy of HYUNDAI MOTOR AMERICA
