Home >> Genesis >> 2023 >> GV70 2.5T Advanced >> Repair and Diagnosis >> Body & Frame >> Seats >> Integrated Memory System (IMS) >> IMS Control Switch >> Connector And Terminal Information >> Connector End View And Terminal Description

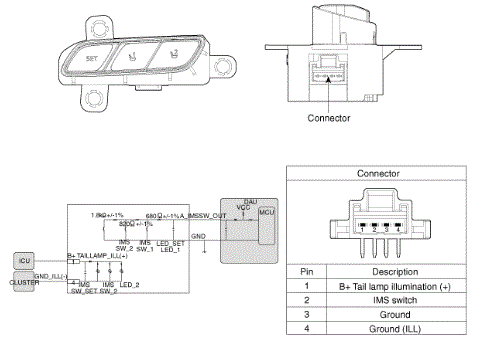

Connector End View And Terminal Description

G14754752

Courtesy of HYUNDAI MOTOR AMERICA
