Removal And Installation: Removal

  1. Disconnect the negative (-) battery terminal.
  2. Remove the console armrest.

    (Refer to Body - "CONSOLE ARMREST ")

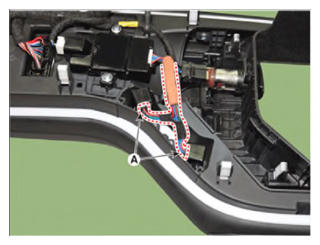

  3. Remove the floor console mood lamp connector (A).
    G14754670Courtesy of HYUNDAI MOTOR AMERICA
  4. Remove the floor console mood lamp bracket (A) after loosening mounting screws.

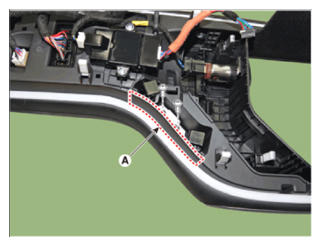

    G14754671Courtesy of HYUNDAI MOTOR AMERICA
  5. Remove the floor console mood lamp (A).

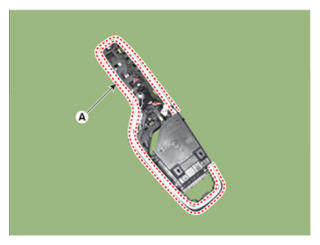

    G14754672Courtesy of HYUNDAI MOTOR AMERICA

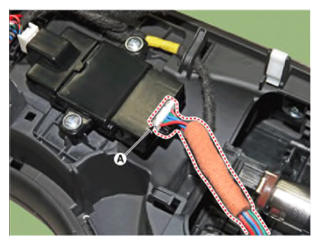

  6. Disconnect the mood lamp control unit connector (A).
    G14754673Courtesy of HYUNDAI MOTOR AMERICA

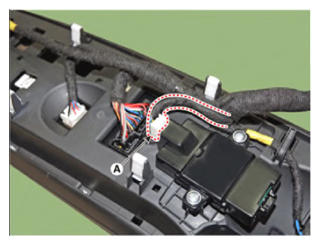

    G14754674Courtesy of HYUNDAI MOTOR AMERICA
  7. Remove the mood lamp control unit (A) after loosening mounting screws.

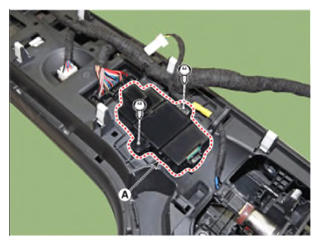

    G14754675Courtesy of HYUNDAI MOTOR AMERICA

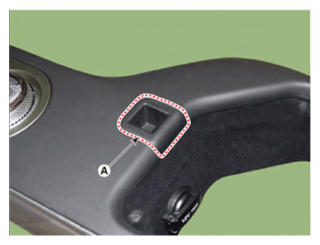

  8. Remove the console armrest cover lock (A).
    G14754676Courtesy of HYUNDAI MOTOR AMERICA

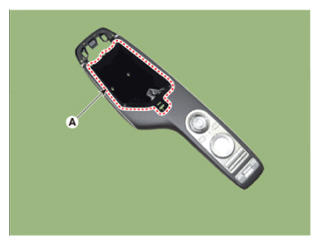

  9. Remove the console armrest rear tray (A).
    G14754677Courtesy of HYUNDAI MOTOR AMERICA

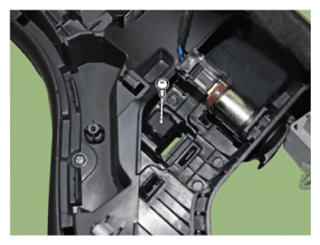

    G14754678Courtesy of HYUNDAI MOTOR AMERICA

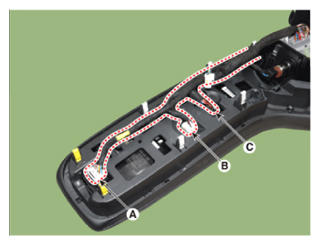

  10. Disconnect PDW switch connector (A), front integrated controller switch (B) and SBW switch (C).
    G14754679Courtesy of HYUNDAI MOTOR AMERICA
  11. Remove the console upper cover (A).

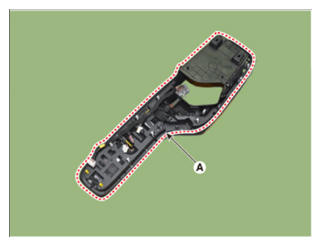

    G14754680Courtesy of HYUNDAI MOTOR AMERICA
  12. Remove the PDW switch assembly (A).

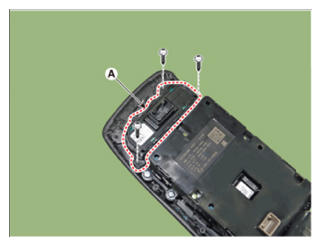

    G14754681Courtesy of HYUNDAI MOTOR AMERICA
  13. Remove the front integrated controller switch (A) after loosening mounting screws.

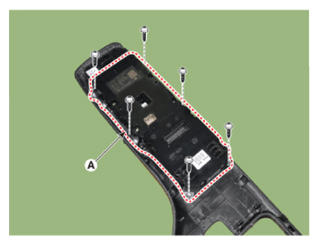

    G14754682Courtesy of HYUNDAI MOTOR AMERICA
