Removal And Installation: Removal

Disconnect the negative (-) battery terminal.

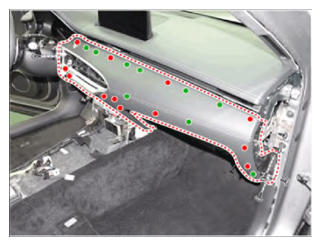

Remove the crash pad garnish [RH].
(Refer to Body - "CRASH PAD GARNISH ")

Courtesy of HYUNDAI MOTOR AMERICA

Information

Courtesy of HYUNDAI MOTOR AMERICA

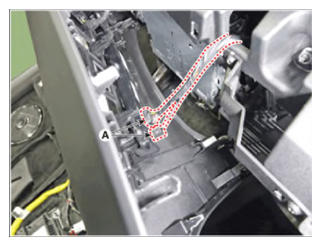

Disconnect the AVN keyboard assembly connector (A).

Courtesy of HYUNDAI MOTOR AMERICA

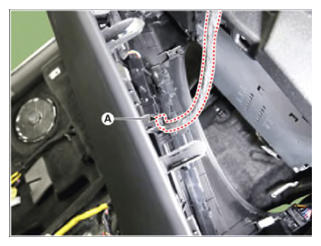

Disconnect the mood lamp connector (A).

Courtesy of HYUNDAI MOTOR AMERICA

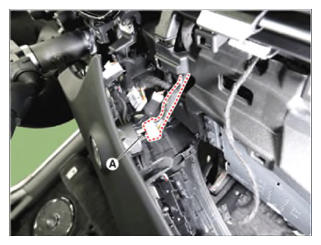

Disconnect the Start/Stop button connector (A).

Courtesy of HYUNDAI MOTOR AMERICA

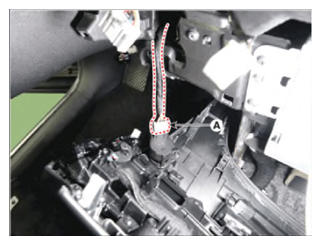

Disconnect the Interior temperature sensor connector (A)

Courtesy of HYUNDAI MOTOR AMERICA

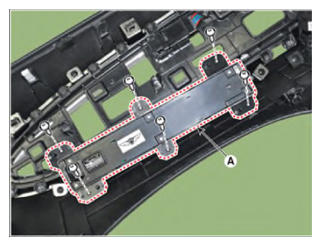

Remove the AVN keyboard assembly (A) after loosening mounting screws.

Courtesy of HYUNDAI MOTOR AMERICA
