End Of Line (EOL) Input

  1. Overview and purpose
    • The purpose is to ensure the initial operation safety by correcting the oil pressure differences between transmissions.
  2. Condition required for inputting the hydraulic characteristic
    • In case of changing the auto transmission assembly and TCM, perform "Oil-pressure characteristics input" procedure with diagnostic tool.

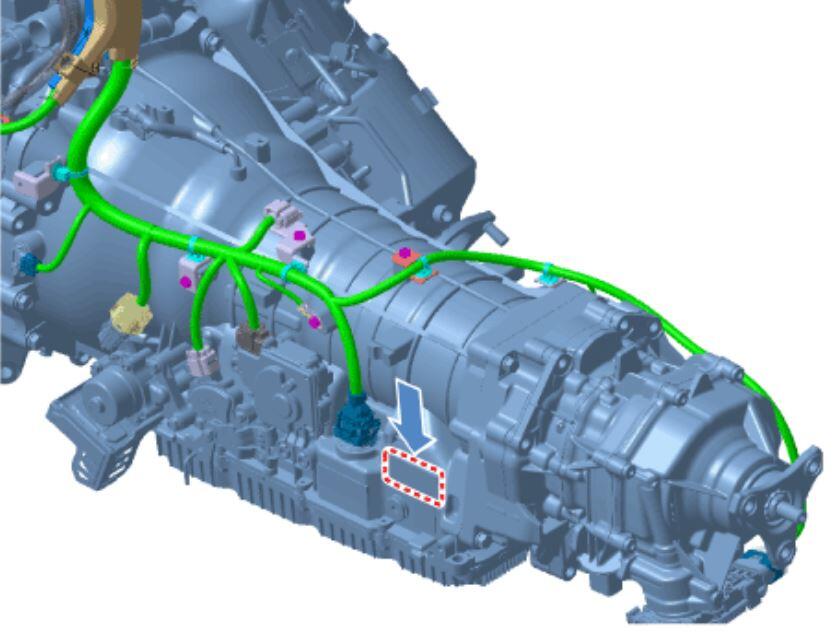

  3. Oil-pressure characteristics (Bar code) location.
    G15547935Courtesy of HYUNDAI MOTOR AMERICA

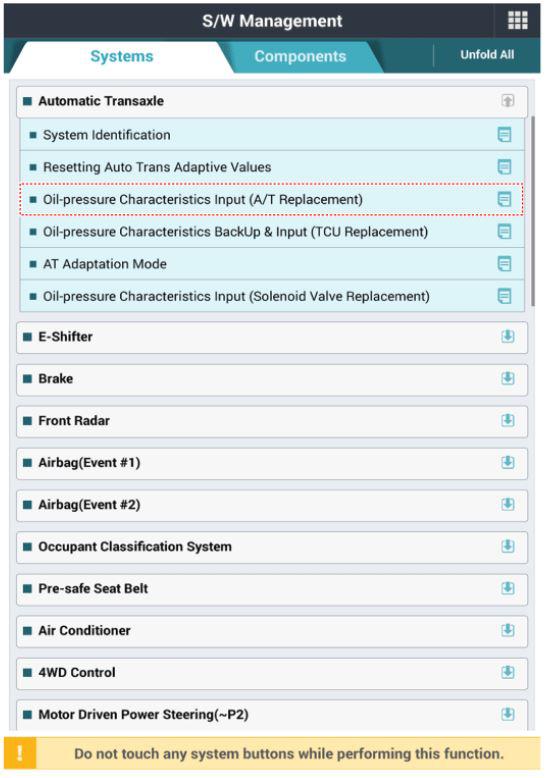

  4. Method for inputting the hydraulic characteristic
    G15547936Courtesy of HYUNDAI MOTOR AMERICA

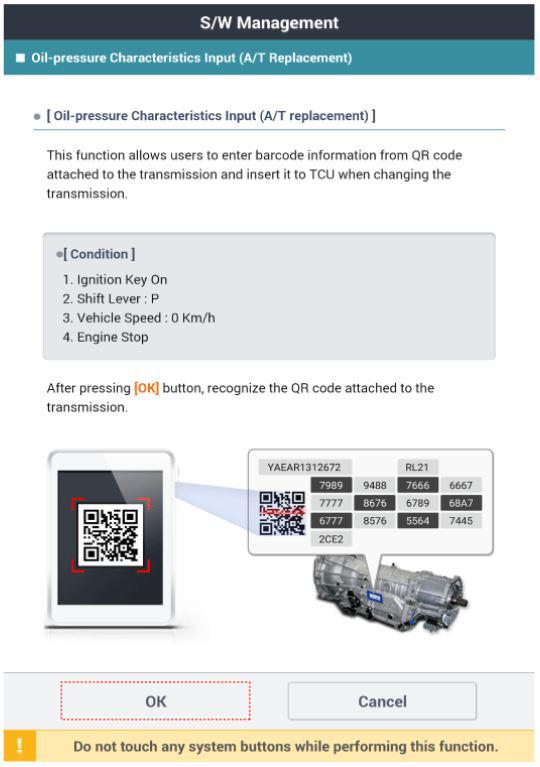

    • Perform the oil pressure characteristics input procedure.
      G15547937Courtesy of HYUNDAI MOTOR AMERICA
    • In case of changing the TCM.

      (Refer to Automatic Transmission Control System - "TRANSMISSION CONTROL MODULE (TCM) ")
