Repair Procedures: Replacement
WARNING: This page is about a different car, the 2024 Genesis G80. However, it is still accessible from the selected car via links, so may be relevant.
- Disconnect the negative (-) battery terminal.
- Remove the glove box.
(Refer to Body (Interior and Exterior) - "GLOVE BOX ")

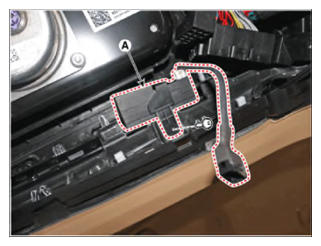

- Press the lock pin and disconnect the PM sensor connector (A).

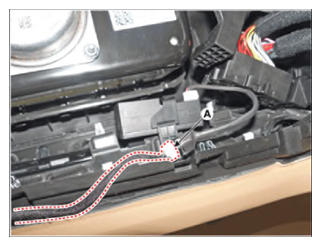

- Loosen the mounting screw and remove the PM sensor (A).
- Install in the reverse order of removal.
Information
- Replace any damaged clips
- Make sure the connector is connected properly.
