Repair Procedures: Replacement

WARNING: This page is about a different car, the 2024 Genesis G80. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect the negative (-) battery terminal.
  2. Remove the heater & blower unit assembly.

    (Refer to Heater - "HEATER UNIT ")

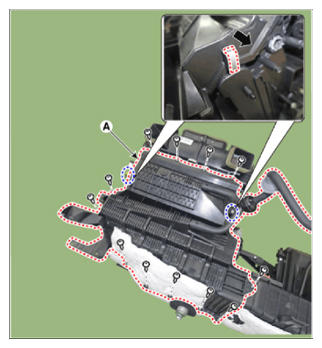

  3. Loosen the mounting screws and clips, remove the evaporator core cover (A).
    G15555045Courtesy of HYUNDAI MOTOR AMERICA

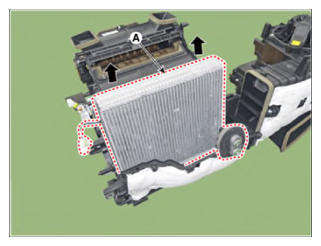

  4. Remove the evaporator core (A) from the heater unit assembly.
    G15555046Courtesy of HYUNDAI MOTOR AMERICA

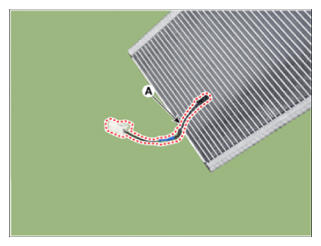

  5. Separate the evaporator temperature sensor (A) from the evaporator core.
    G15555047Courtesy of HYUNDAI MOTOR AMERICA
  6. Install in the reverse order of removal.
