Repair Procedures: Removal

WARNING: This page is about a different car, the 2024 Genesis G80. However, it is still accessible from the selected car via links, so may be relevant.
  1. Turn ignition switch OFF and disconnect the negative (-) battery cable.
  2. Remove the crash pad lower panel.

    (Refer to Body - "CRASH PAD LOWER PANEL ")

  3. Remove the knee airbag.

    (Refer to Restraint - "KNEE AIRBAG (KAB) MODULE ")

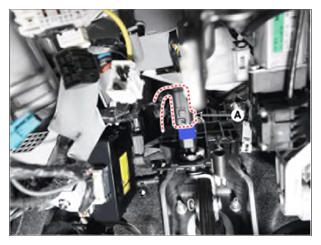

  4. Disconnect the brake lamp switch connector (A).
    G15549120Courtesy of HYUNDAI MOTOR AMERICA
  5. Pull the locking plate (A) as indicated by the arrow.
    G15549121Courtesy of HYUNDAI MOTOR AMERICA
  6. Turn stop lamp switch 45° counter clock wise and remove it.
    G15549122Courtesy of HYUNDAI MOTOR AMERICA
  7. Inspect a removed stop lamp switch along the below procedures.
    1. Confirm a normal connection with terminal part.
      • A confirmation can be made to see if the connector has been secured properly and if a connection mark is present.
    2. Perform the inspection of parts resistance.
