Repair Procedures: Installation
WARNING: This page is about a different car, the 2024 Genesis G80. However, it is still accessible from the selected car via links, so may be relevant.
- Install in the reverse order of removal.

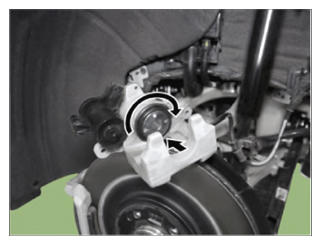

- When installing, press and rotate the piston into the caliper body until it is fully retracted.
- After installation, bleed the brake system.
(Refer to BRAKE BLEEDING PROCEDURES Brake System - "Brake System Bleeding Procedures")

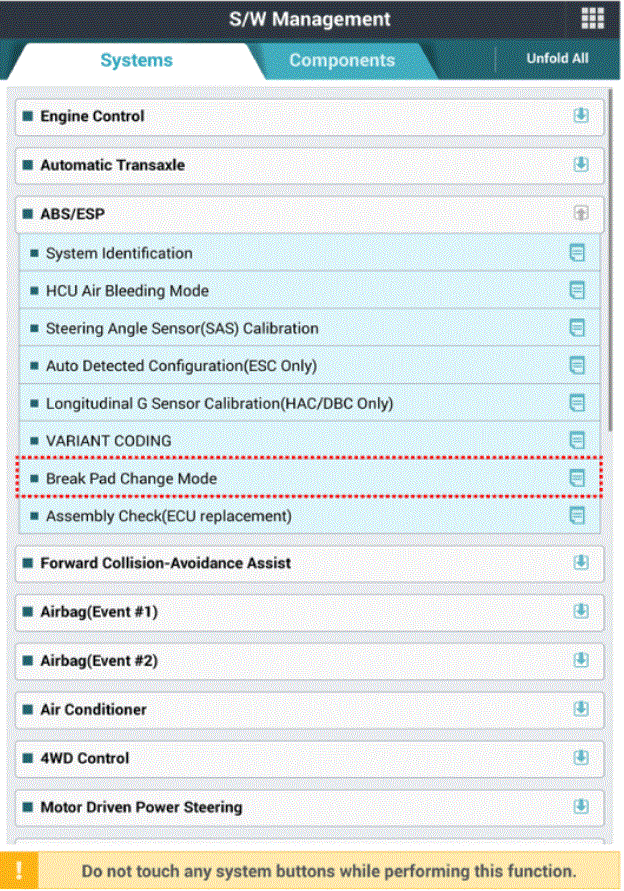

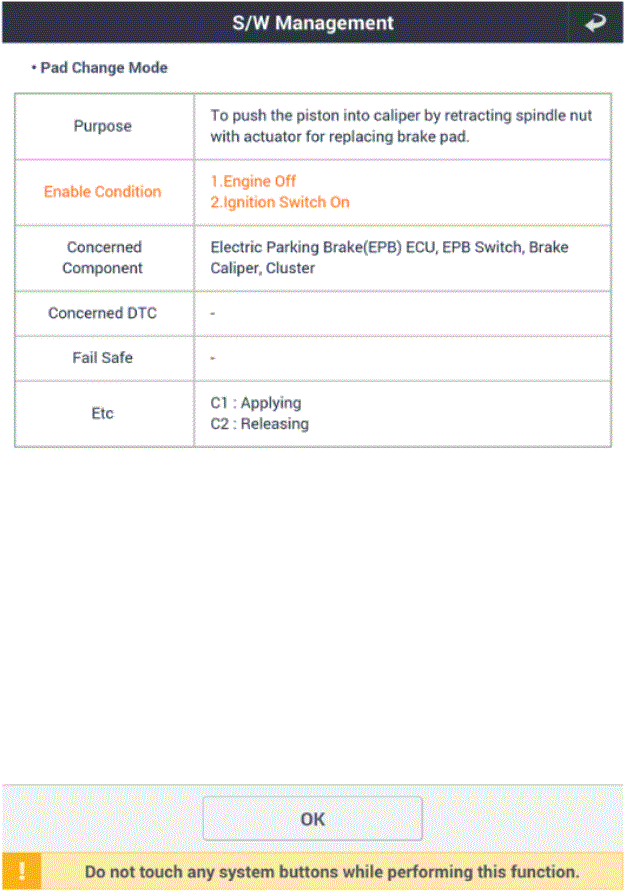

- After installing the rear caliper, perform "Brake Pad Replacement Mode" using the diagnostic tool.

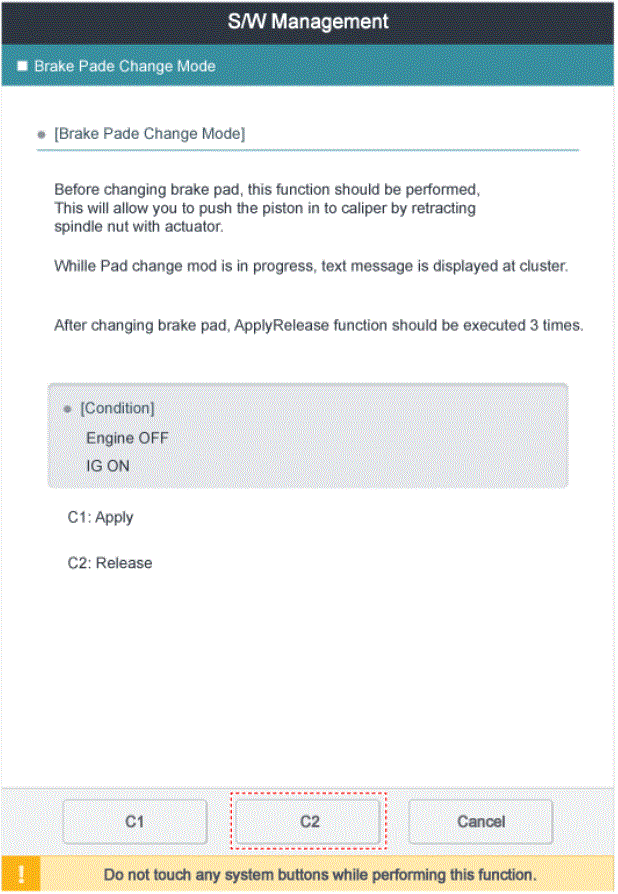

- Select C1 (Apply) on the screen below.

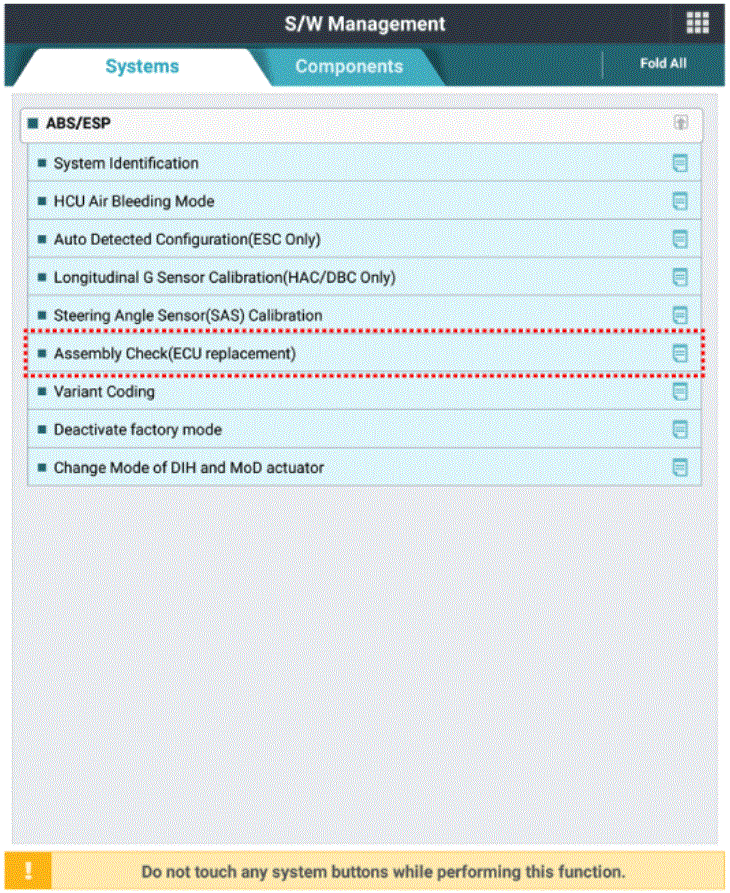

- After replacing the rear caliper, make sure that the caliper is installed correctly by performing "Check assembling (ECU replaced)" from the option
