Repair Procedures: Removal: Notes

WARNING: This page is about a different car, the 2024 Genesis G80. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect the negative (-) battery terminal.
  2. Remove the front bumper cover.

    (Refer to Body - "FRONT BUMPER ASSEMBLY ")

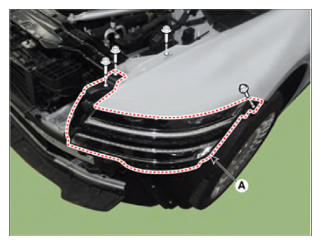

  3. Remove the head lamp (A) after loosening mounting bolts.
    G15554838Courtesy of HYUNDAI MOTOR AMERICA

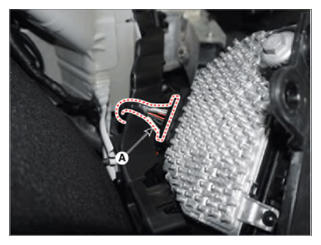

  4. Disconnect the head lamp connector (A) and then remove the head lamp.
    G15554839Courtesy of HYUNDAI MOTOR AMERICA
    NOTE:

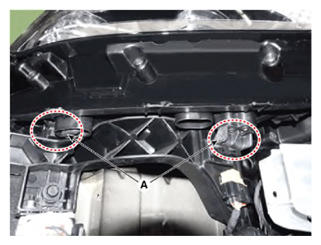

    • Take care that holding clip (A) is not to be damaged.
    G15554840Courtesy of HYUNDAI MOTOR AMERICA
