Repair Procedures: Removal

WARNING: This page is about a different car, the 2024 Genesis G80. However, it is still accessible from the selected car via links, so may be relevant.
CAUTION:
  • Wrap the protective tape on the tool to disassemble with the screwdriver or remover.
  • Use caution in keeping and handling during disassembling/assembling because it is easily contaminated with lubricant and oil.
  • Use caution for the crash pad garnish and door trim upper garnish made of timber (Real wood) because they can be scratched or picked.
  • Be careful not to scratch the door trim and other parts.
  1. Disconnect the negative (-) battery terminal.
  2. Remove the crash pad side garnish [RH].

    (Refer to Body - "CRASH PAD GARNISH ")

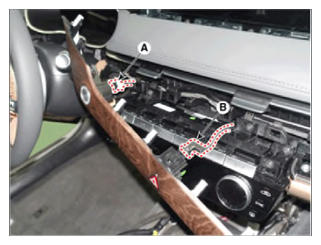

  3. Disconnect SSB switch connector (A) and Hazard switch connector (B).
    G15554871Courtesy of HYUNDAI MOTOR AMERICA
  4. Remove the hazard switch (A) after loosening mounting screws.
    G15554872Courtesy of HYUNDAI MOTOR AMERICA
