Repair Procedures: Removal

WARNING: This page is about a different car, the 2024 Genesis G80. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect the negative (-) battery terminal.
  2. If it is necessary to remove multifunction switch assembly, remove the steering wheel.

    (Refer to Steering wheel - "REMOVAL ")

  3. Remove the steering column shroud panel.

    (Refer to Body - "STEERING COLUMN SHROUD PANEL ")

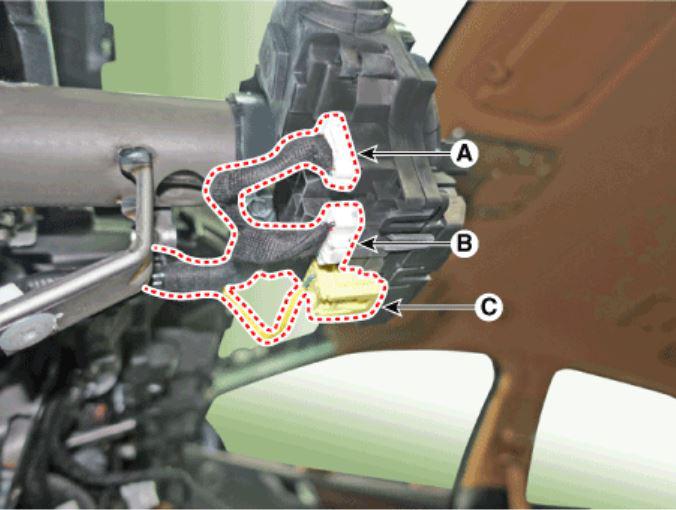

  4. Disconnect the multifunction switch connector (A), steering column angle connector (B) and airbag connector (C).
    G15549940Courtesy of HYUNDAI MOTOR AMERICA

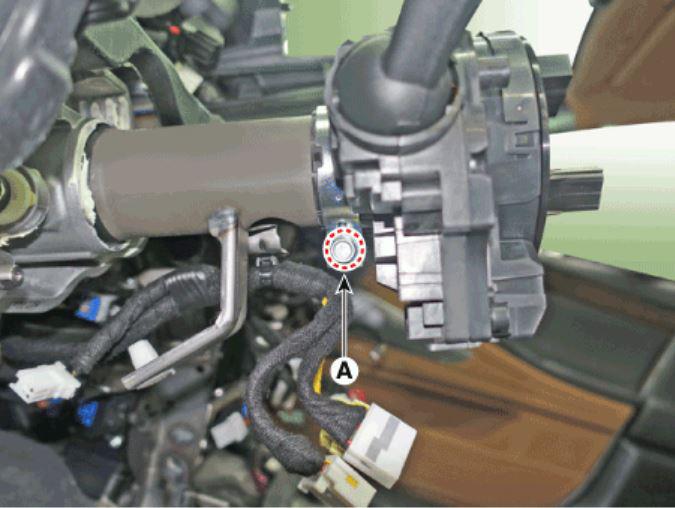

  5. Loosen the mounting screw (A) and remove the multifunction switch assembly.
    G15549941Courtesy of HYUNDAI MOTOR AMERICA
