SVM Front Camera

  1. Disconnect the negative (-) battery terminal.
  2. Remove the front bumper cover.

    (Refer to Body - "FRONT BUMPER ASSEMBLY ")

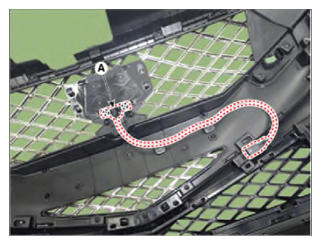

  3. Disconnect the front camera connector, loosen the mounting screws and remove the front camera (A).
    G15555389Courtesy of HYUNDAI MOTOR AMERICA
