Ultra Optical Camera - Front

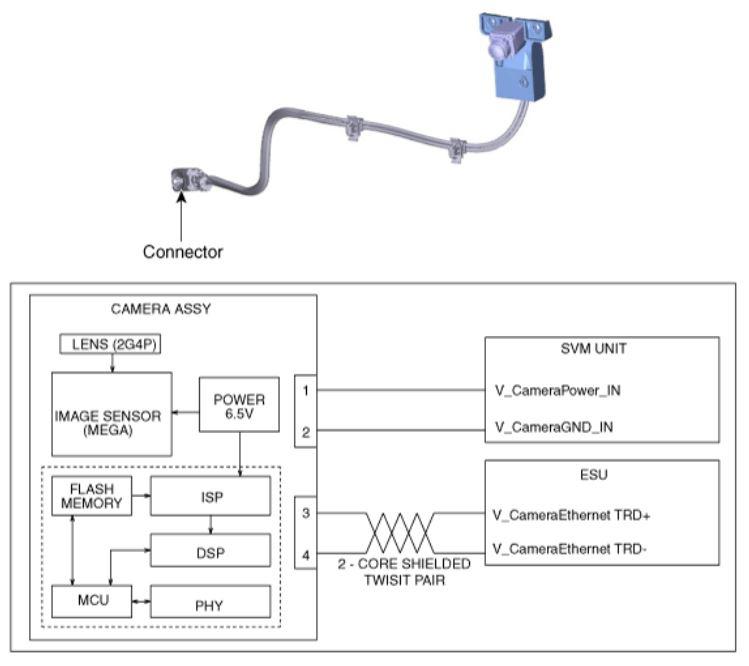

G15555387Courtesy of HYUNDAI MOTOR AMERICA
Connector NO Description
G14932243Courtesy of HYUNDAI MOTOR AMERICA
 1 Camera Power
2 Camera Ground
3 Ethernet_TRD (+)
4 Ethernet_TRD (-)
