Repair Procedures: Removal

  1. Switch "OFF" the ignition and disconnect the negative (-) battery terminal.
  2. Remove the drive belt.

    (Refer to Engine Mechanical System - "DRIVE BELT ")

  3. Disconnect the alternator connector (B), and remove the cable (A) from alternator "B" terminal.

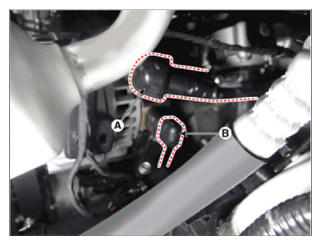

    G15591589Courtesy of HYUNDAI MOTOR AMERICA
  4. Remove the alternator lower bolt and upper bolt (A).

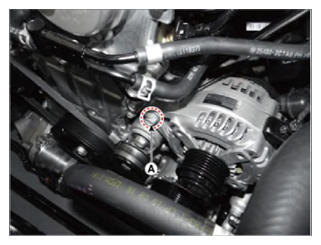

    G15591590Courtesy of HYUNDAI MOTOR AMERICA

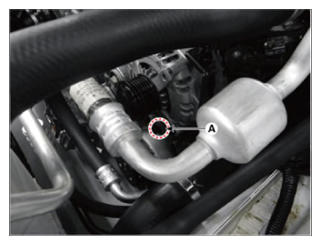

    G15591591Courtesy of HYUNDAI MOTOR AMERICA
  5. Remove the alternator (A).

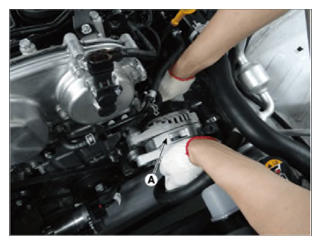

    G15591592Courtesy of HYUNDAI MOTOR AMERICA

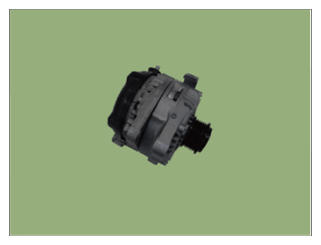

    G15591593Courtesy of HYUNDAI MOTOR AMERICA
