End Of Line (EOL) Input

Overview and purpose
- The purpose is to ensure the initial operation safety by correcting the oil pressure differences between transmissions.
Condition required for inputting the hydraulic characteristic
- In case of changing the auto transmission assembly and TCM, perform "Oil-pressure characteristics input" procedure with GDS.

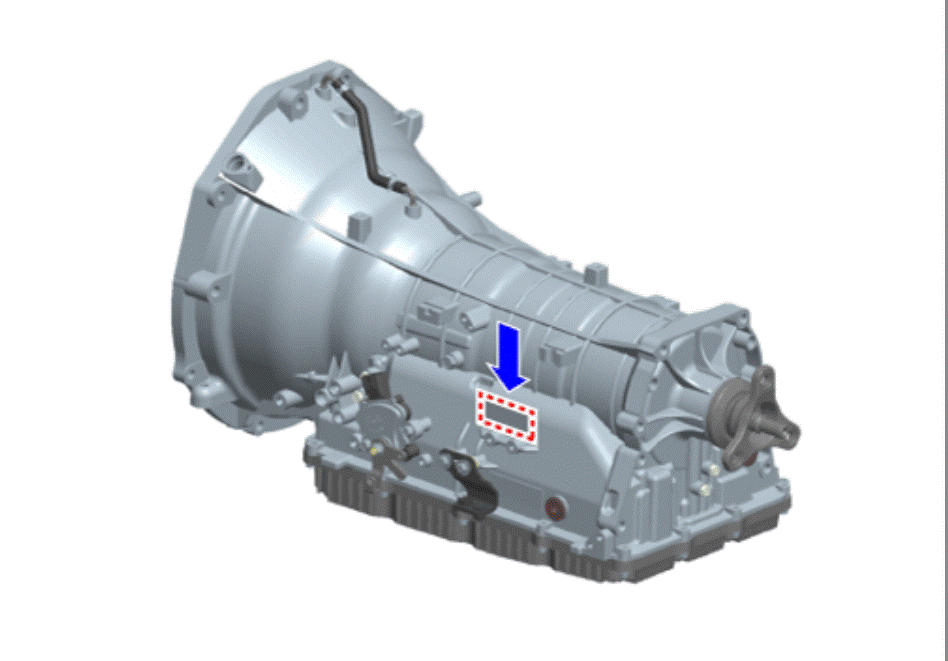

Oil-pressure characteristics (Bar code) location.

Courtesy of HYUNDAI MOTOR AMERICA

Method for inputting the hydraulic characteristic

In case of changing the automatic transmission assembly.

Perform "Oil-pressure characteristics input" procedure.
With the Internet access (automatic mode): Input serial number of the transmission.

Without the Internet access (manual mode): Input the oil-pressure characteristics in the bar code.

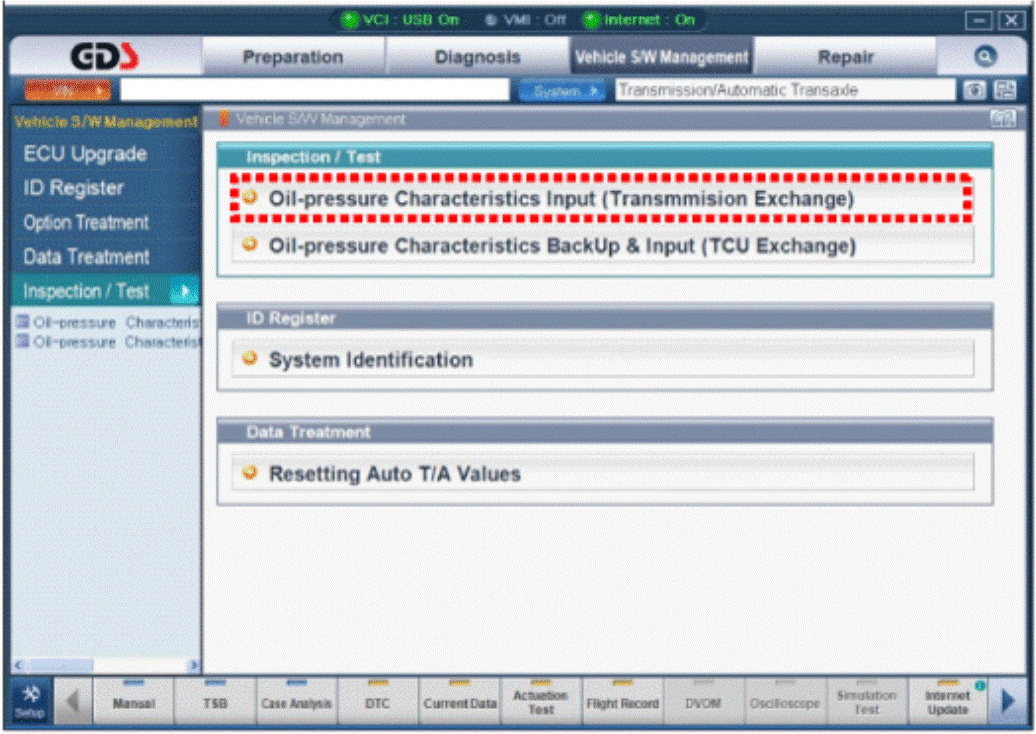

G15587051

Courtesy of HYUNDAI MOTOR AMERICA

G15587052

Courtesy of HYUNDAI MOTOR AMERICA

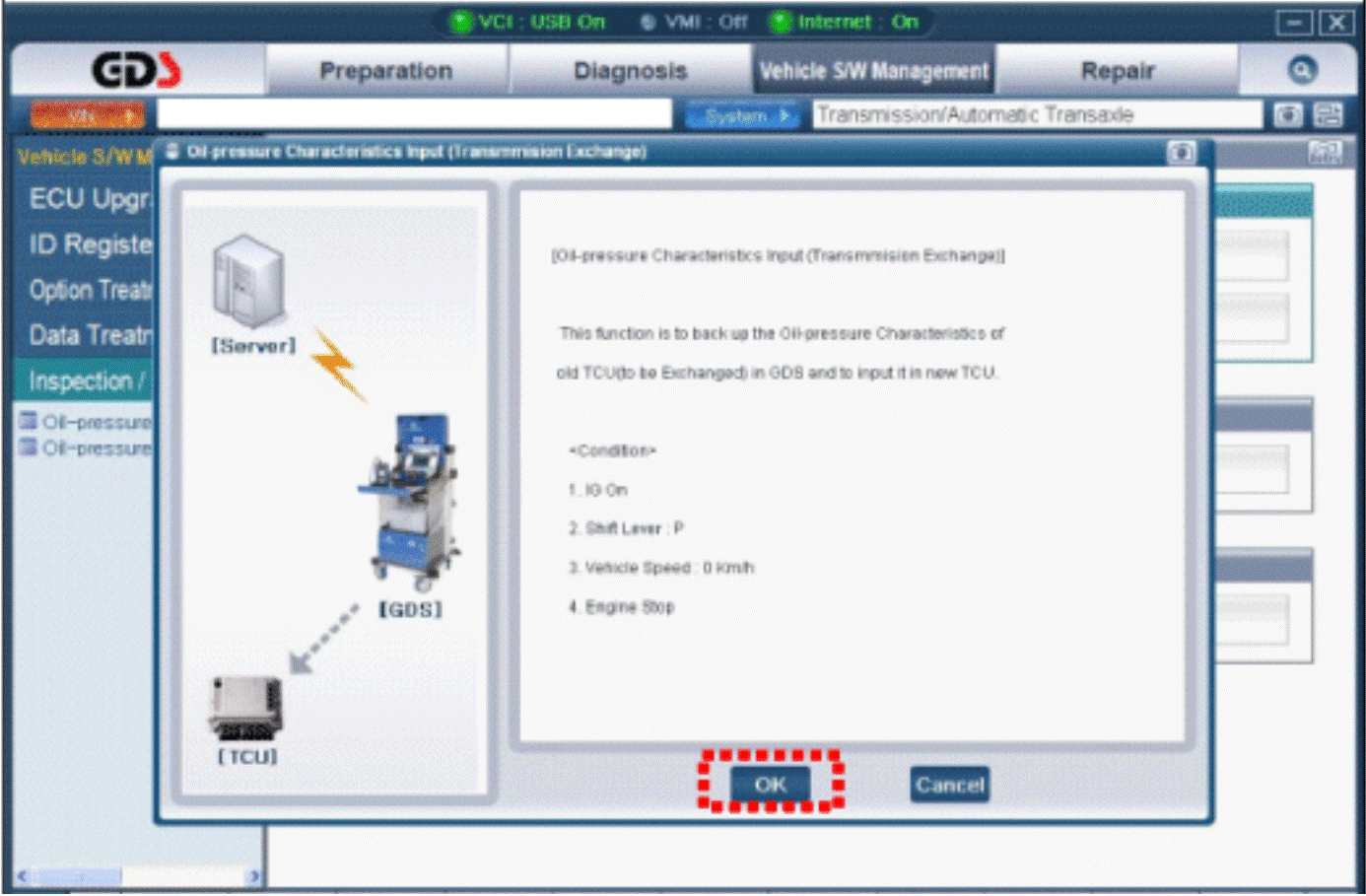

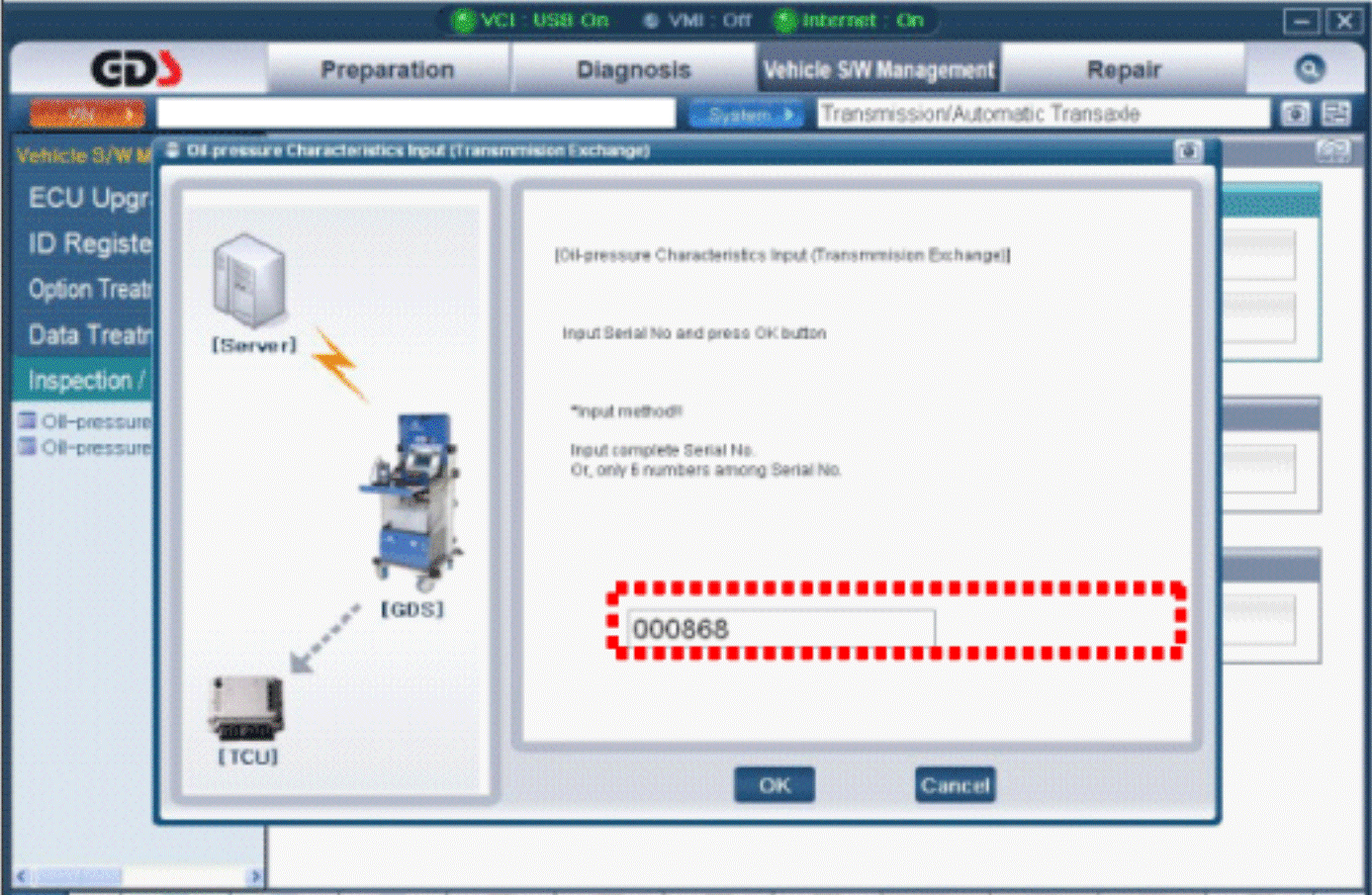

With the Internet access (automatic mode).

G15587053

Courtesy of HYUNDAI MOTOR AMERICA

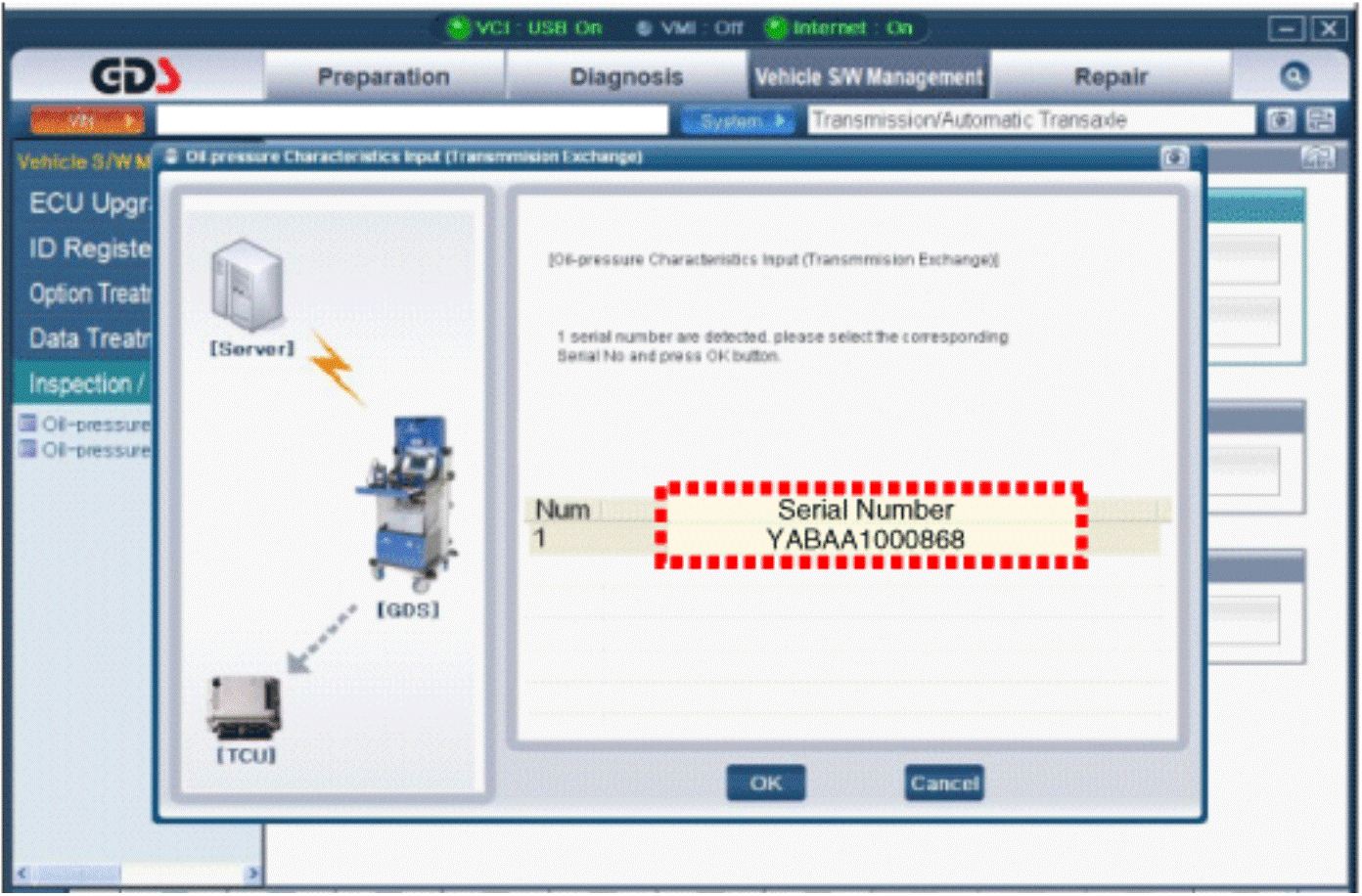

G15587054

Courtesy of HYUNDAI MOTOR AMERICA

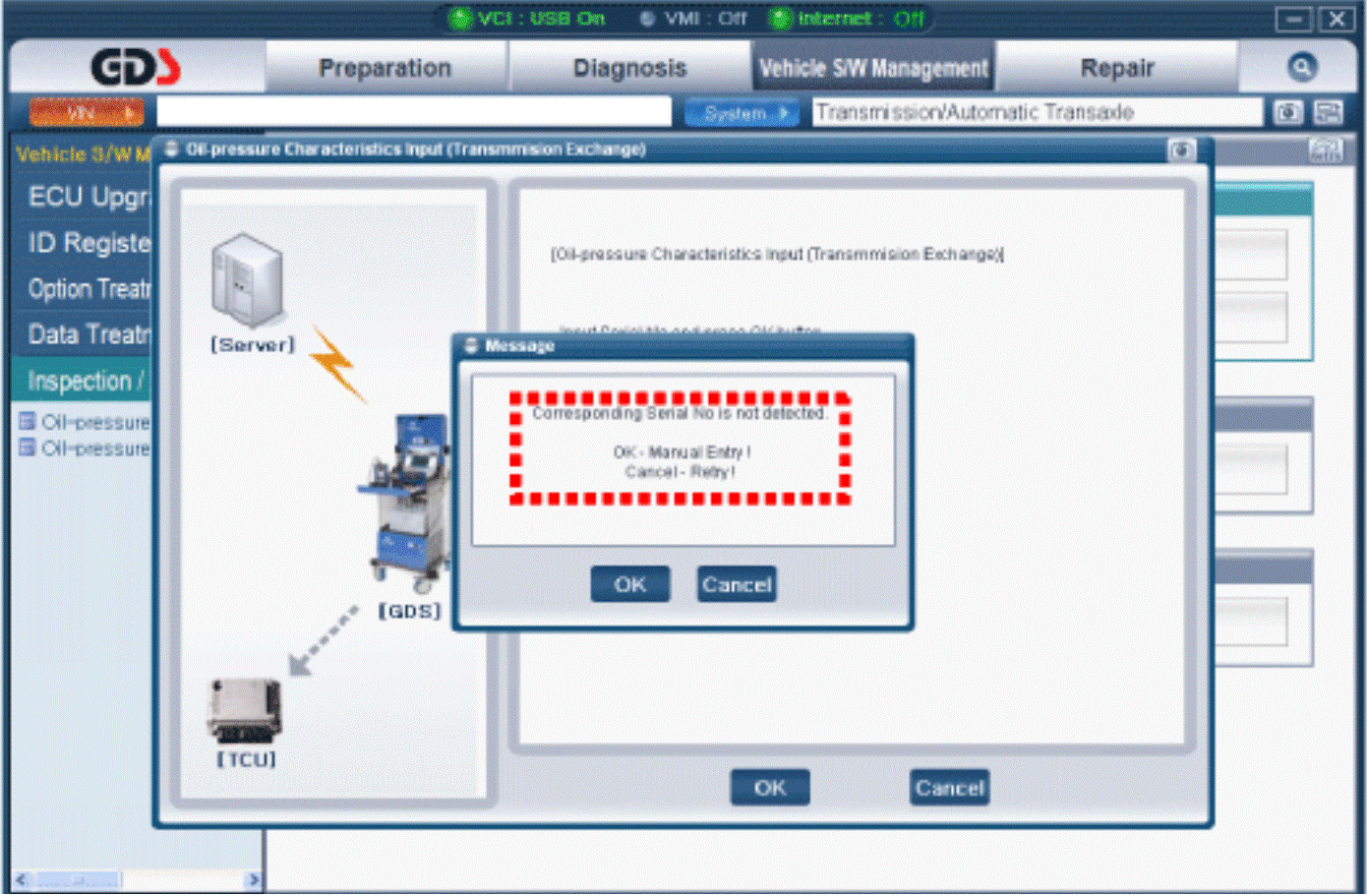

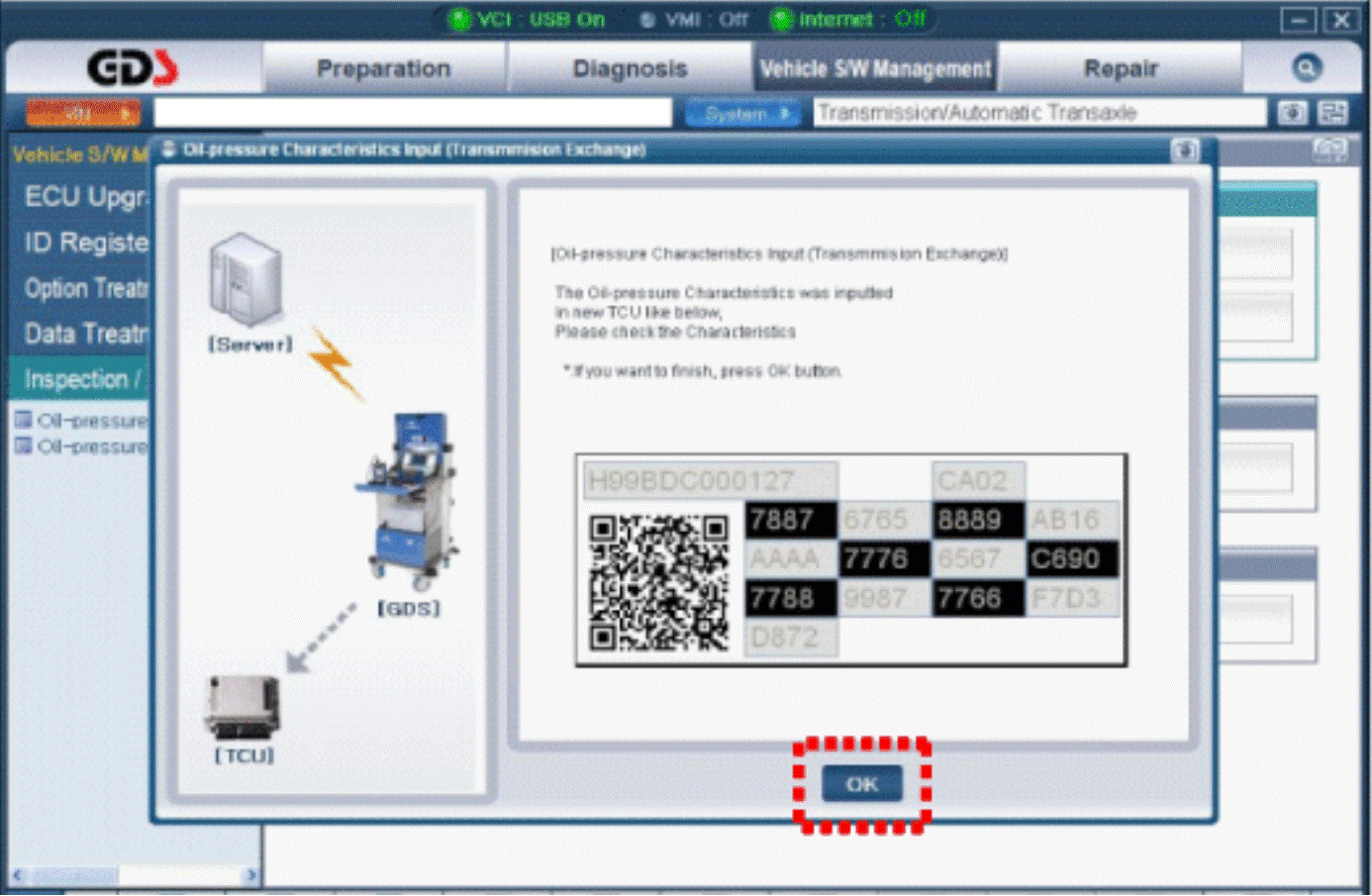

Without the Internet access (manual mode).

G15587055

Courtesy of HYUNDAI MOTOR AMERICA

G15587056

Courtesy of HYUNDAI MOTOR AMERICA

In case of changing the TCM.

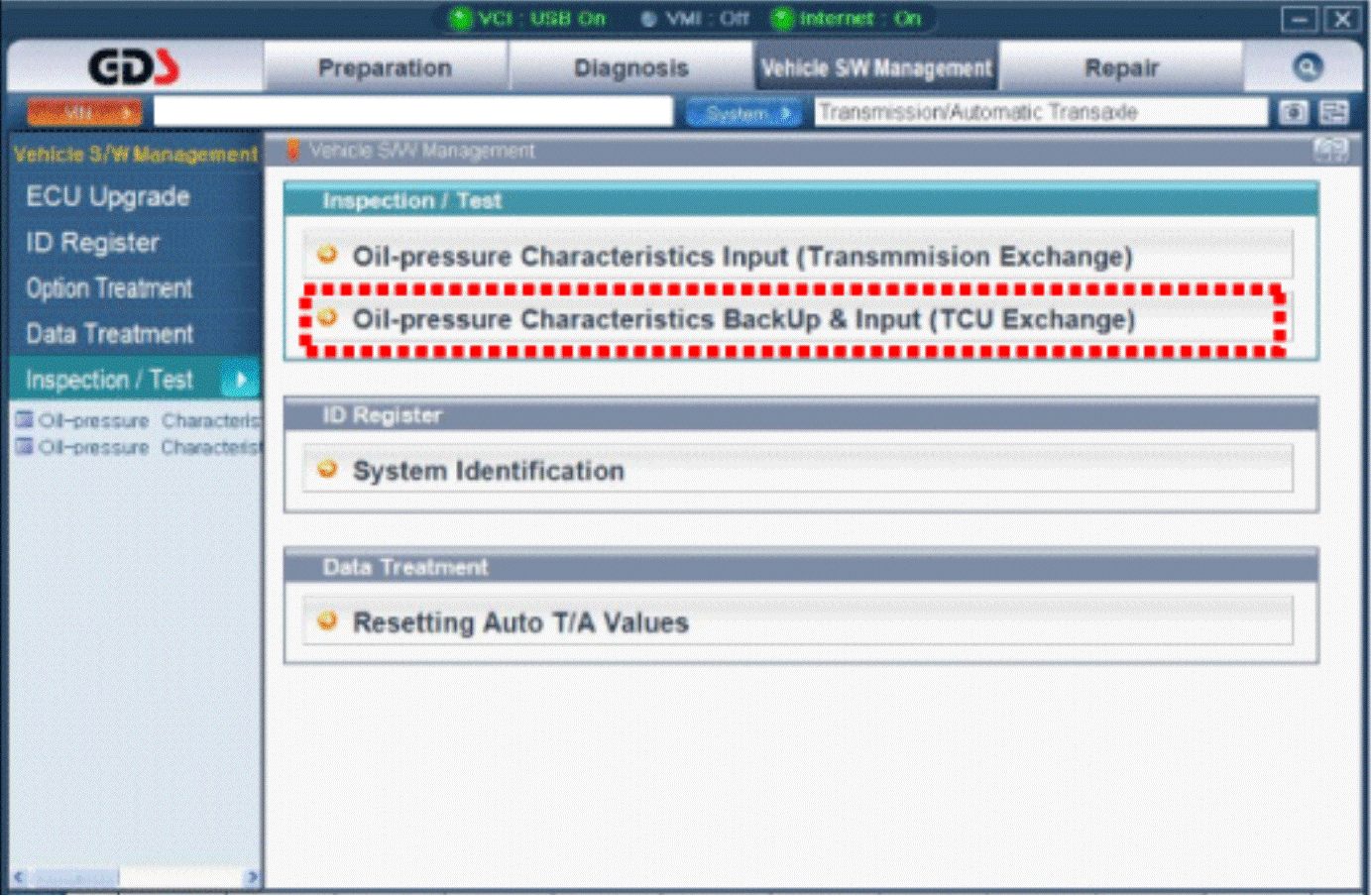

Perform "Oil-pressure characteristics backup & input" procedure.

G15587057

Courtesy of HYUNDAI MOTOR AMERICA

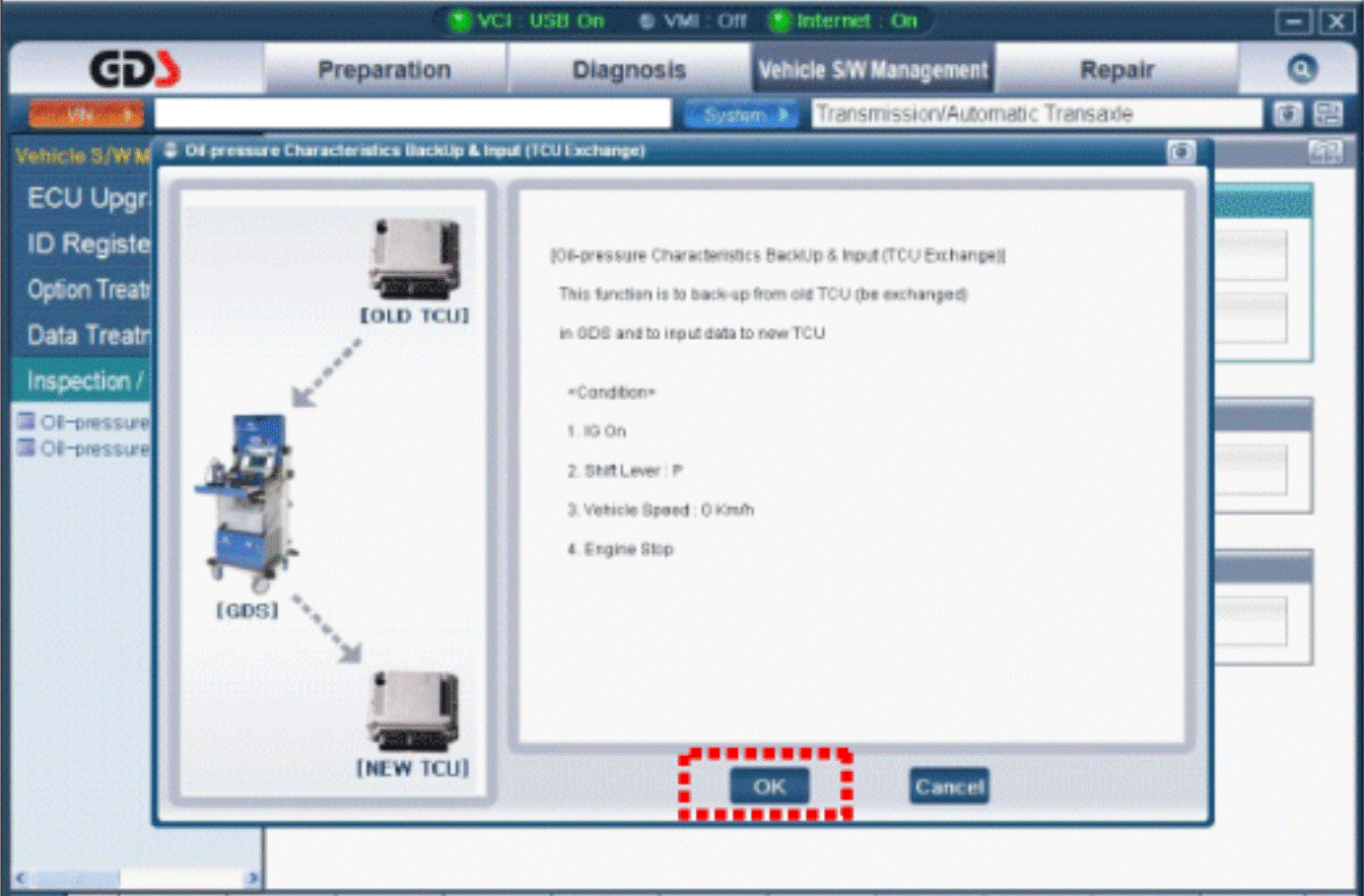

G15587058

Courtesy of HYUNDAI MOTOR AMERICA

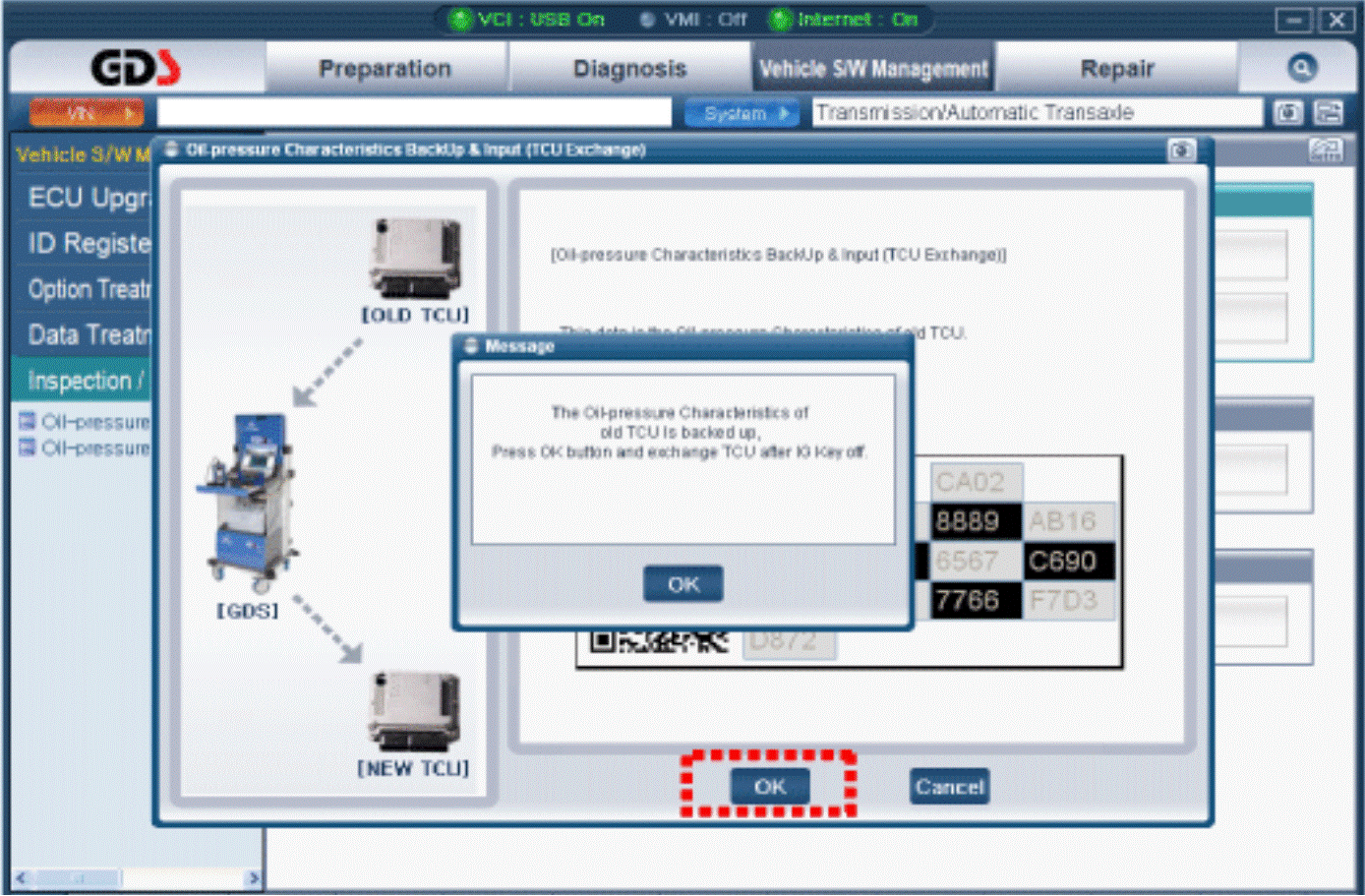

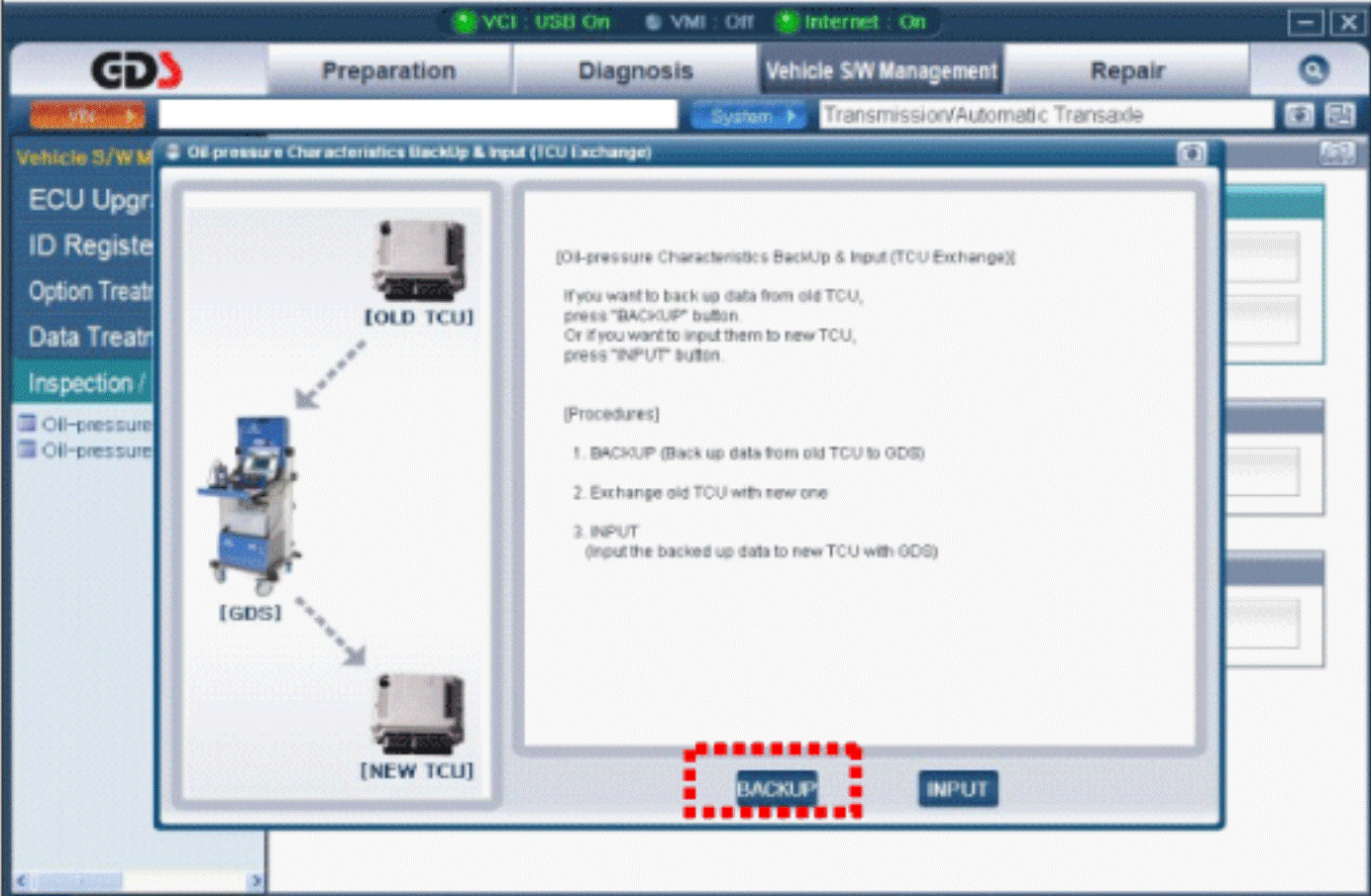

Perform "Oil-pressure characteristics backup" procedure.

G15587059

Courtesy of HYUNDAI MOTOR AMERICA

G15587060

Courtesy of HYUNDAI MOTOR AMERICA

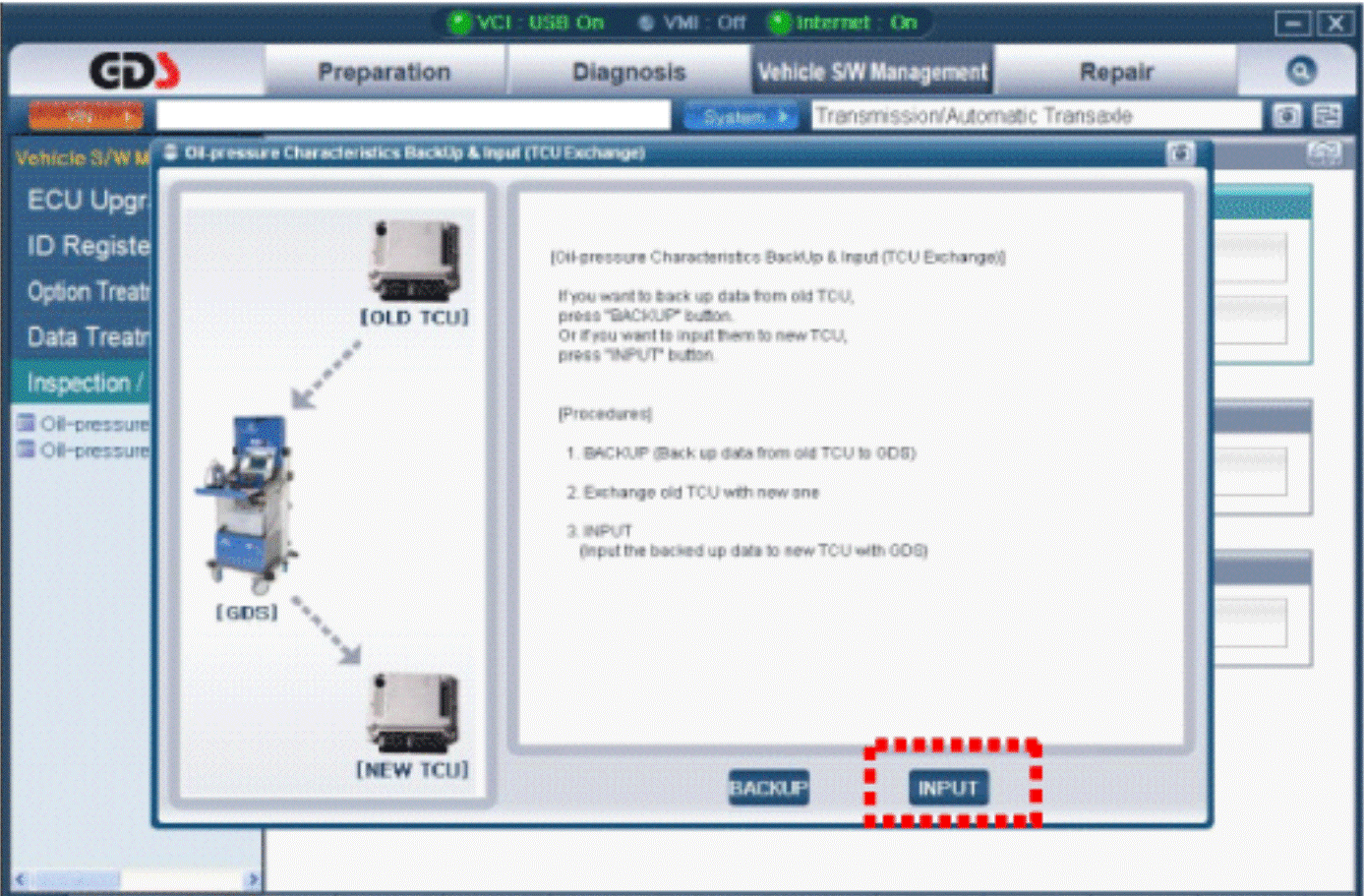

Perform "Oil-pressure characteristics input" procedure.

G15587061

Courtesy of HYUNDAI MOTOR AMERICA

G15587062

Courtesy of HYUNDAI MOTOR AMERICA

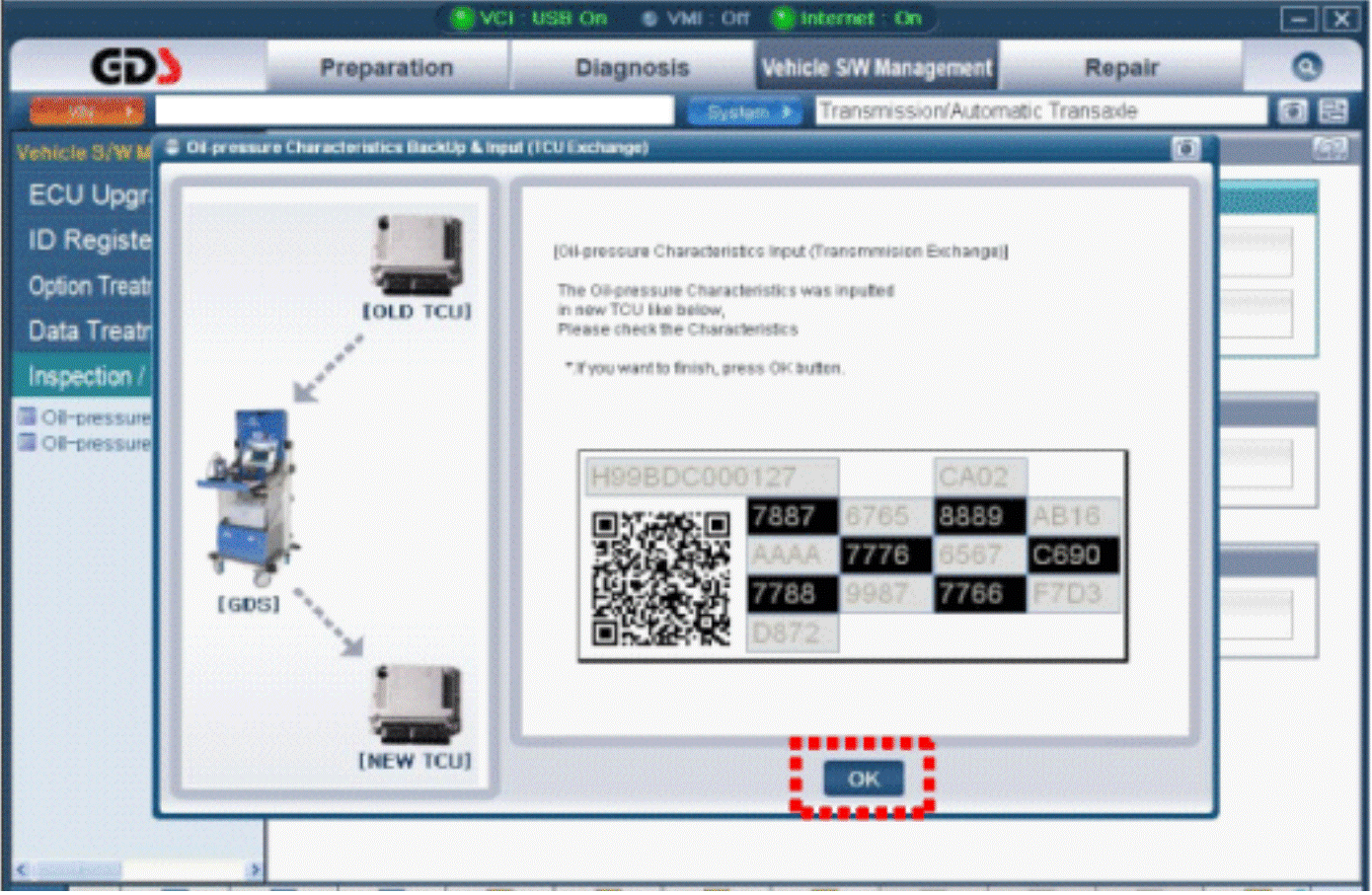

G15587063

Courtesy of HYUNDAI MOTOR AMERICA
