Repair Procedures: Replacement
- Remove the front seat assembly.
(Refer to Front Seat - "FRONT SEAT ASSEMBLY ")

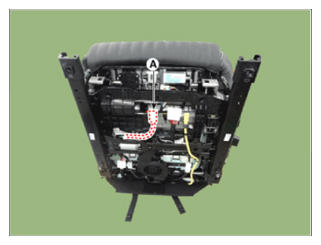

- Disconnect the front seat belt buckle connector wiring (A).

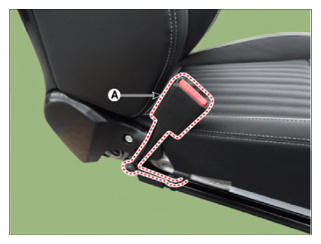

- After loosening the mounting bolt, remove the front seat belt buckle (A).
Tightening torque:
39.2 - 53.9 N.m (4.0 - 5.5 kgf.m, 28.9 - 39.8 lb-ft)
- To install, reverse the removal procedure.
Information
- Make sure the connector is plugged in properly.
