Repair Procedures: Removal

  1. Turn the ignition switch OFF.

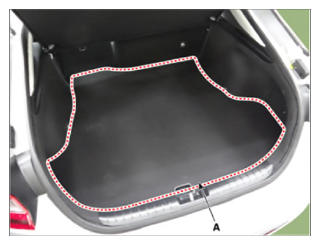

  2. Remove the luggage covering (A).
    G15586906Courtesy of HYUNDAI MOTOR AMERICA

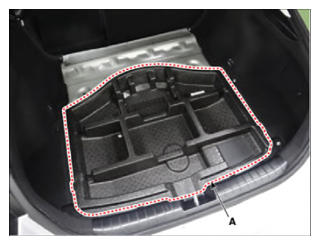

  3. Remove the luggage center tray (A).
    G15586907Courtesy of HYUNDAI MOTOR AMERICA

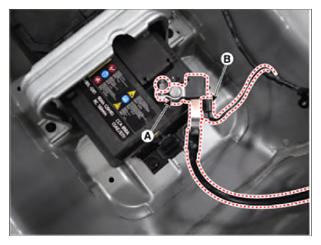

  4. Disconnect the battery negative (-) terminal (A).
  5. Disconnect the battery sensor connector (B).
    G15586908Courtesy of HYUNDAI MOTOR AMERICA
  6. Remove the battery sensor by loosening the mounting bolts (C).
G15586909Courtesy of HYUNDAI MOTOR AMERICA
