Repair Procedures: Removal

  1. Disconnect the negative (-) battery terminal.
  2. Remove the steering wheel.

    (Refer to Steering System - "STEERING WHEEL ")

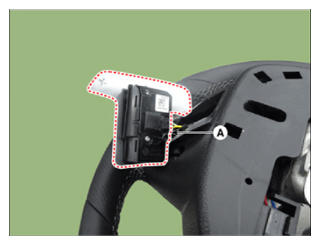

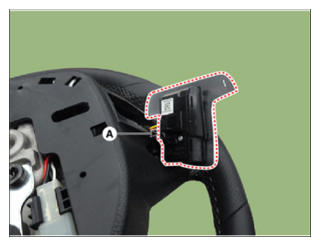

  3. Remove the paddle shift lever and conductor (A).
    G15590554Courtesy of HYUNDAI MOTOR AMERICA
    G15590555Courtesy of HYUNDAI MOTOR AMERICA

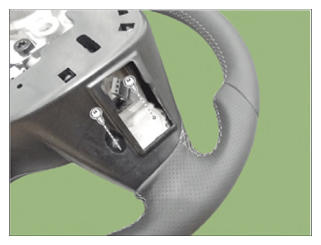

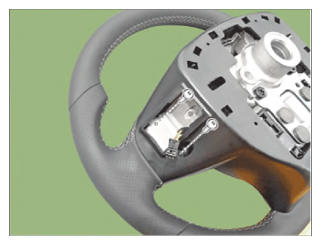

  4. Loosen steering wheel switch mounting screws.

    [Rear]

    G15590556Courtesy of HYUNDAI MOTOR AMERICA
    G15590557Courtesy of HYUNDAI MOTOR AMERICA

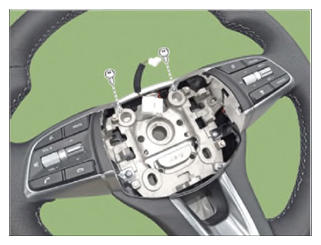

    [Front]

    G15590558Courtesy of HYUNDAI MOTOR AMERICA

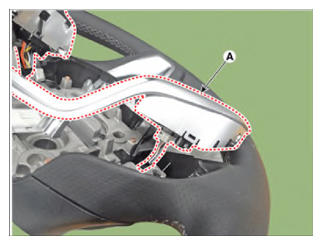

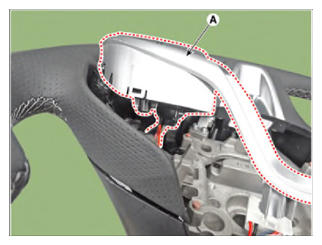

  5. Disconnect switch connectors and then remove the steering wheel switch (A).
    G15590559Courtesy of HYUNDAI MOTOR AMERICA
    G15590560Courtesy of HYUNDAI MOTOR AMERICA
