Repair Procedures: Inspection

  1. Check for resistance between terminals in right switch position.

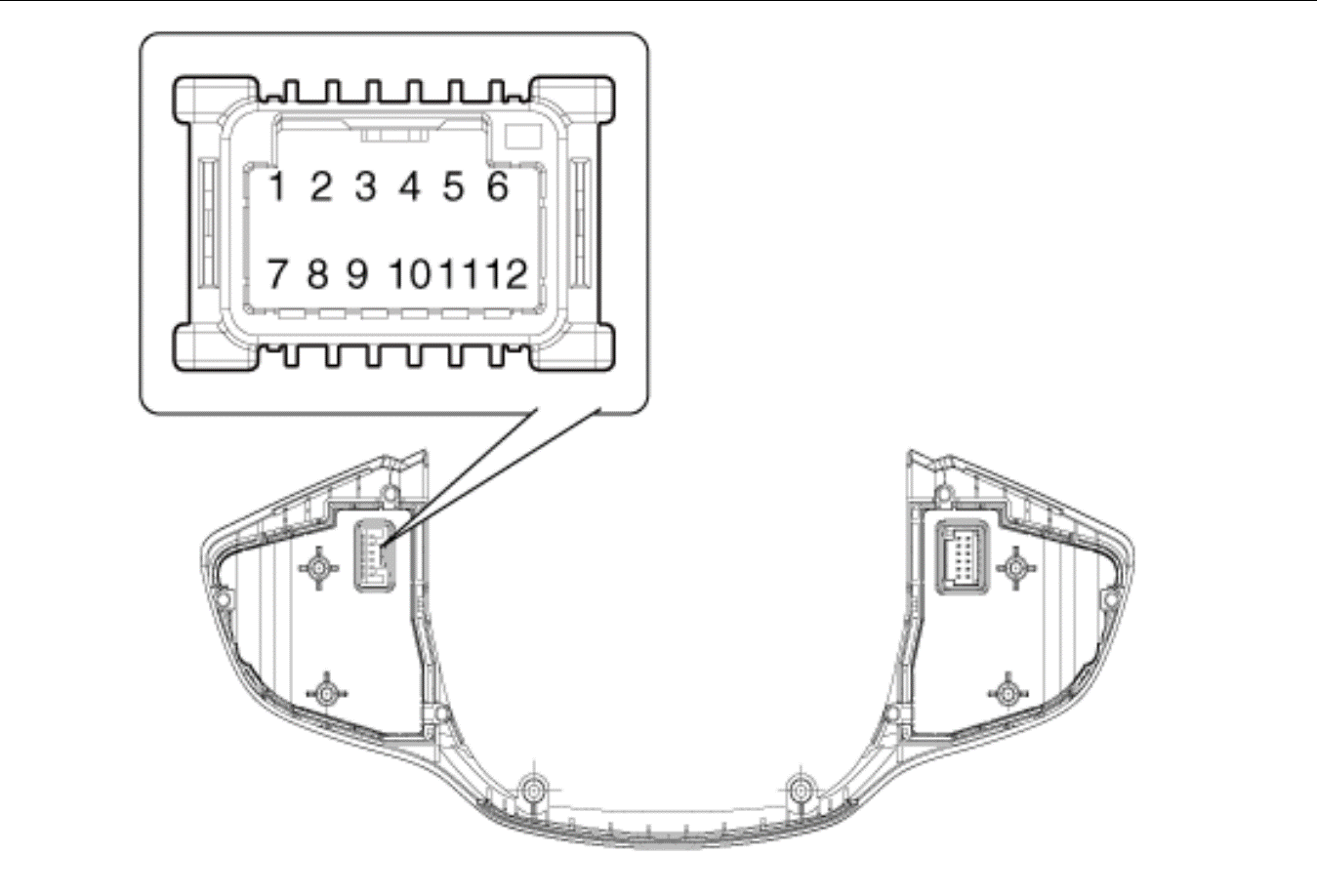

    G15590553Courtesy of HYUNDAI MOTOR AMERICA
    SWITCH RESISTANCE SPECIFICATIONS - TRIP/CRUISE

    Switch Connector terminal Resistance (± 3%)
    CANCEL 3-4 390 Ω
    SET (-) 3-4 610 Ω
    RES (+) 3-4 910 kΩ
    Cruise ON/OFF 3-4 1.38 kΩ
    SLD 3-4 2.13 kΩ
    Smart Cruise 3-4 3.63 kΩ
