Front Impact Sensor (FIS): Removal: [RH]

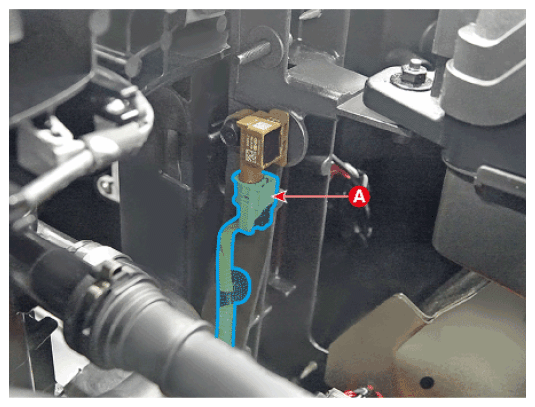

  1. Disconnect the FIS connector (A).
    G16818009Courtesy of HYUNDAI MOTOR AMERICA

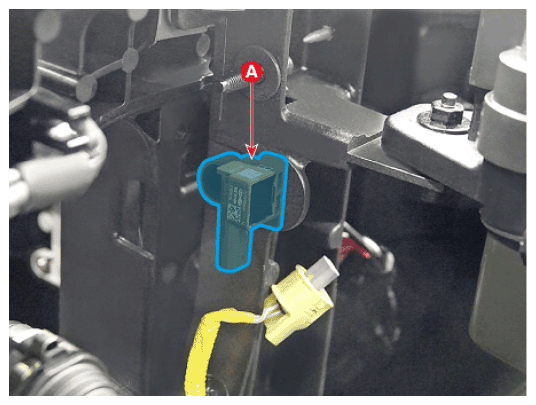

  2. Remove the FIS (A), after removing the bolt.

    Tightening torque:

    7.8 - 8.8 N.m (0.8 - 0.9 kgf.m, 5.8 - 6.5 lb-ft)

    G16818010Courtesy of HYUNDAI MOTOR AMERICA
