[Front Oil Temperature Sensor]

CAUTION:
  • When lifting the vehicle using a lift, be careful not to damage the lower parts of the vehicle. (floor under cover, battery)

    (Refer to General Information - "LIFT AND SUPPORT POINTS ")

  1. Remove the auxiliary battery tray.

    (Refer to Vehicle Control System - "AUXILIARY BATTERY (12V) ")

  2. Remove the front under cover.

    (Refer to Front Motor and Reduction Gear System - "FRONT UNDER COVER ")

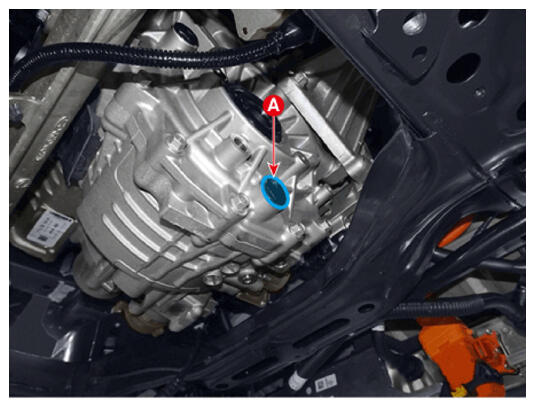

  3. Drain the motor and reduction gear oil after removing the drain plug (A).
    G16820686Courtesy of HYUNDAI MOTOR AMERICA
  4. Disconnect the oil temperature sensor connector (A).
    G16820687Courtesy of HYUNDAI MOTOR AMERICA

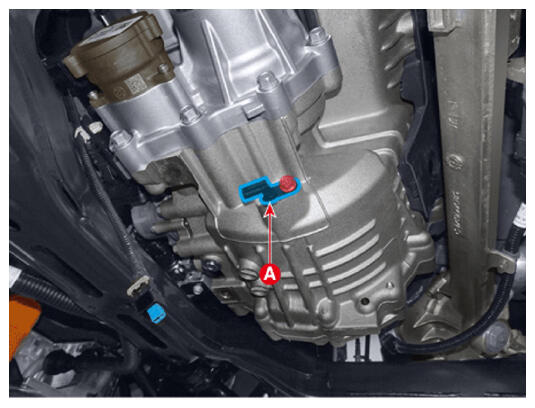

  5. Remove the oil temperature sensor (A).
G16820688Courtesy of HYUNDAI MOTOR AMERICA
