Variant Coding

  1. Ignition switch OFF, connect GDS.

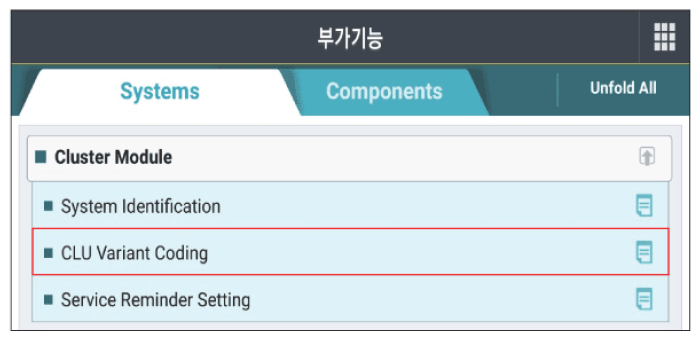

  2. Ignition switch ON and the EV OFF, select "S/W Management" mode and select "CLU Variant Coding".
G16822721Courtesy of HYUNDAI MOTOR AMERICA

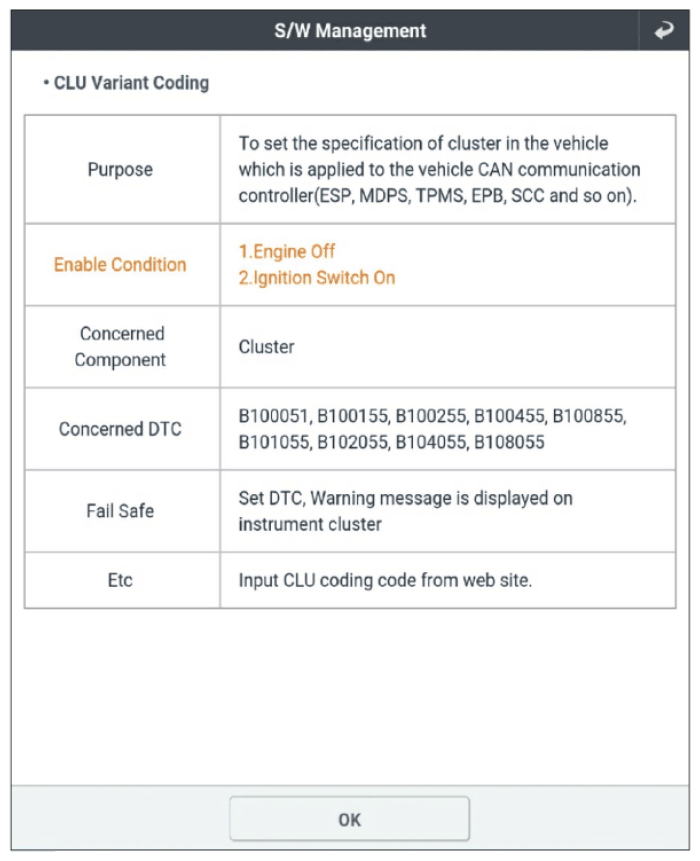

G16822722Courtesy of HYUNDAI MOTOR AMERICA

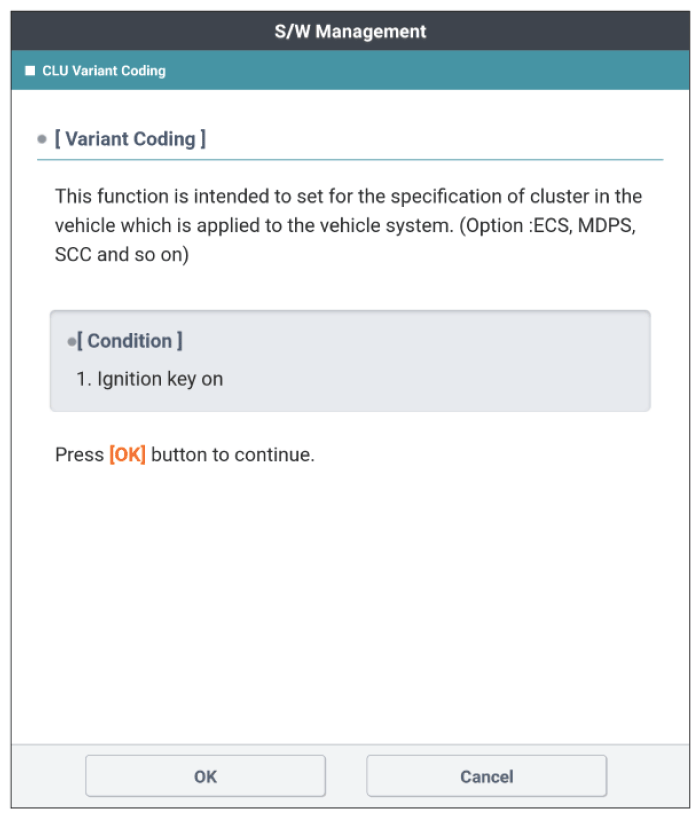

G16822723Courtesy of HYUNDAI MOTOR AMERICA

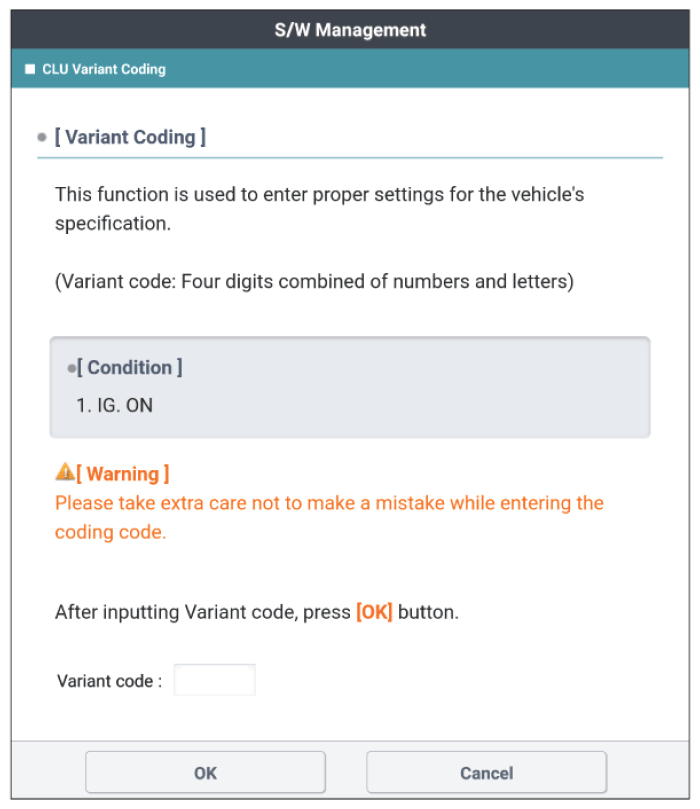

G16822724Courtesy of HYUNDAI MOTOR AMERICA

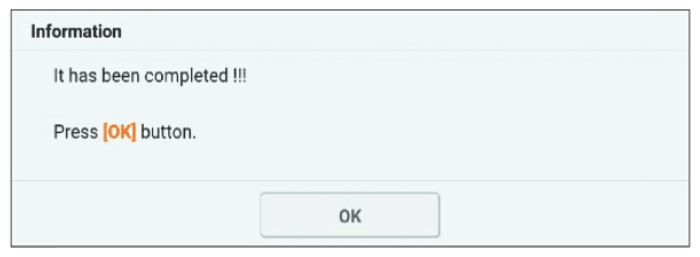

G16822725Courtesy of HYUNDAI MOTOR AMERICA
