Smart Key Antenna (Interior 3)

1. Disconnect the battery negative (-) terminal.

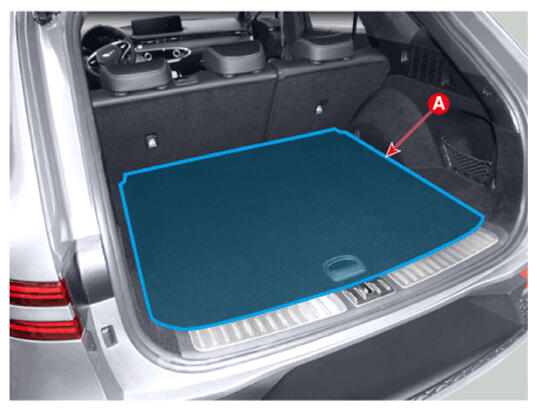

2. Remove the luggage board (A).

   Courtesy of HYUNDAI MOTOR AMERICA

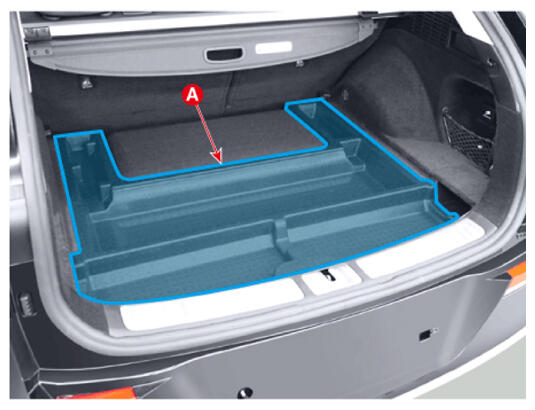

3. Remove the luggage tray (A).

   Courtesy of HYUNDAI MOTOR AMERICA

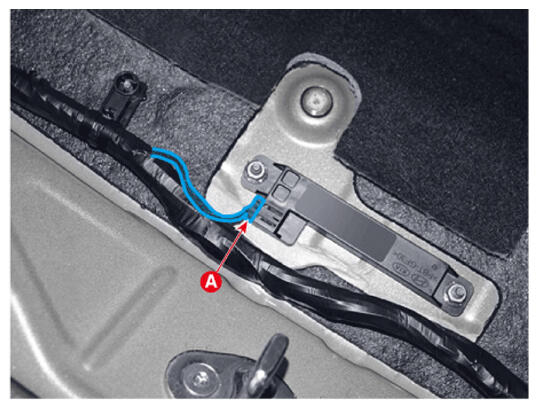

4. Disconnect the smart key antenna connector (A).

   Courtesy of HYUNDAI MOTOR AMERICA

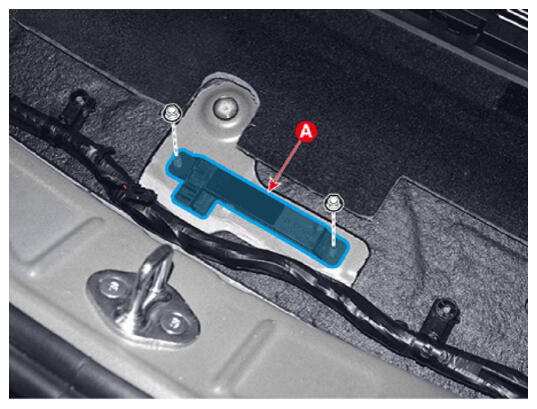

5. Remove the smart key antenna (A), after removing the nuts.

   Courtesy of HYUNDAI MOTOR AMERICA

6. Install in the reverse order of removal.

Information

• Make sure the connector is connected properly.
