Smart Key Antenna (Front Bumper)

1. Disconnect the battery negative (-) terminal.
2. Remove the front bumper upper cover.

   (Refer to Front & Rear Bumper - "FRONT BUMPER ASSEMBLY ")

3. Disconnect the smart key antenna connector (A).

   Courtesy of HYUNDAI MOTOR AMERICA

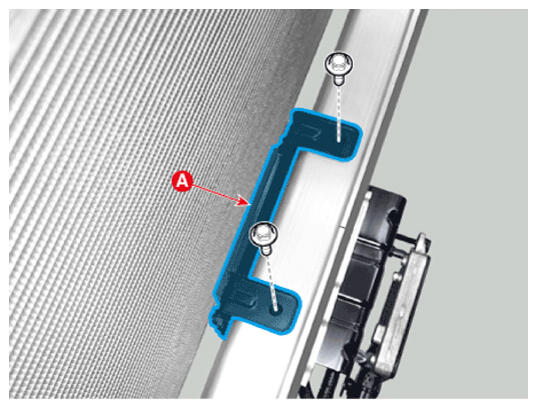

4. Remove the smart key antenna (A), after removing the bolts.

   Courtesy of HYUNDAI MOTOR AMERICA

5. Install in the reverse order of removal.

Information

• Make sure the connector is connected properly.
