Home >> Genesis >> 2023 >> Electrified G80 >> Repair and Diagnosis >> Steering >> Electronic Steering >> Steering Column Module (SCM) >> Schematic Diagrams

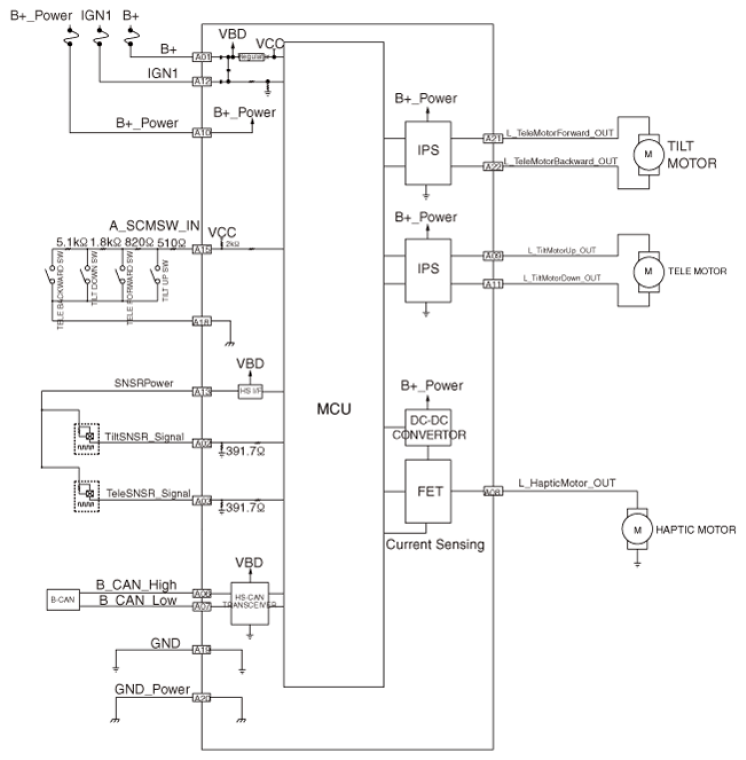

Schematic Diagrams

G16871333

Courtesy of HYUNDAI MOTOR AMERICA
