[Rear Oil Temperature Sensor]

CAUTION:
  • When lifting a vehicle using a lift, be careful not to damage the lower parts of the vehicle (floor under cover, battery).

(Refer to General Information - "LIFT AND SUPPORT POINTS ")
  1. Disconnect the battery negative terminal.

    (Refer to Vehicle Control System - "AUXILIARY 12V BATTERY ")

  2. Remove the rear under cover.

    (Refer to Rear Motor and Reduction Gear System - "REAR UNDER COVER ")

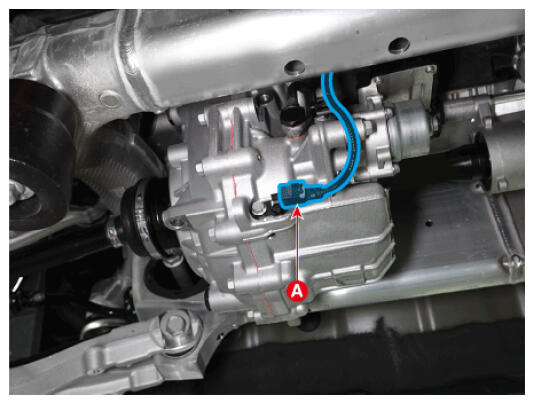

  3. Disconnect the oil temperature sensor connector (A).
    G16878400Courtesy of HYUNDAI MOTOR AMERICA

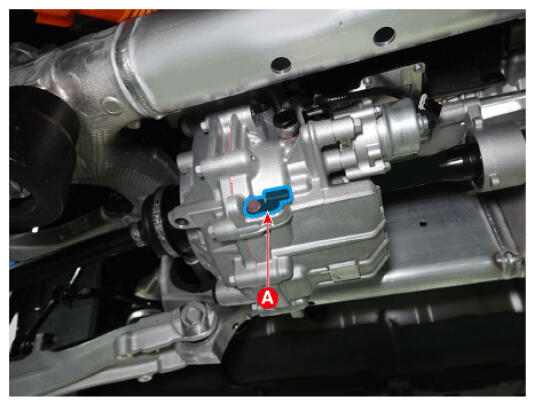

  4. Remove the oil temperature sensor (A).
    G16878401Courtesy of HYUNDAI MOTOR AMERICA
  5. To install, reverse the removal procedures.
NOTE:

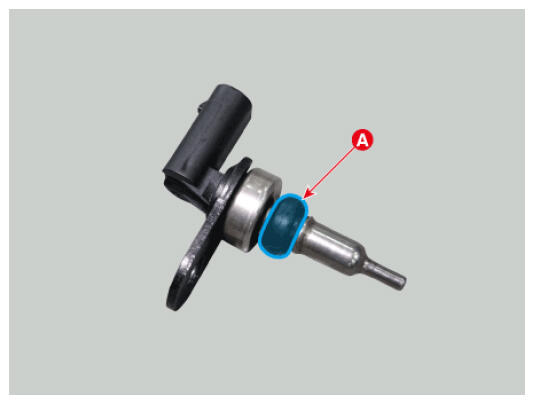

  • Replace the O-ring (A) with a new one.
G16878402Courtesy of HYUNDAI MOTOR AMERICA
