Home >> Genesis >> 2023 >> Electrified G80 >> Repair and Diagnosis >> Body & Frame >> Door Locks >> Power Trunk Module Diagnosis >> DTC B24D0-00: Power Trunk Module Inline Mode Not Deactivated >> Troubleshooting >> Diagnostic Flowchart

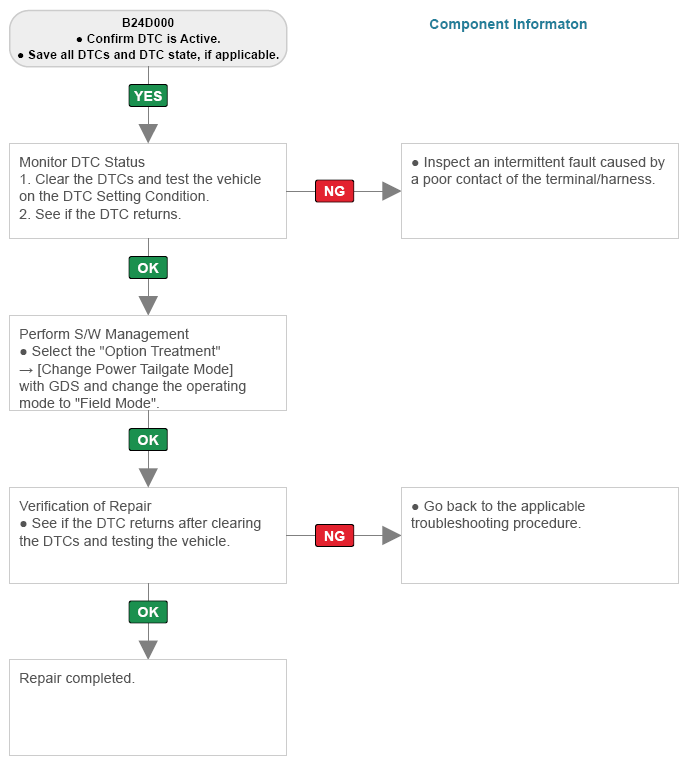

Diagnostic Flowchart

G16865784

Courtesy of HYUNDAI MOTOR AMERICA
