Connector And Terminal Information

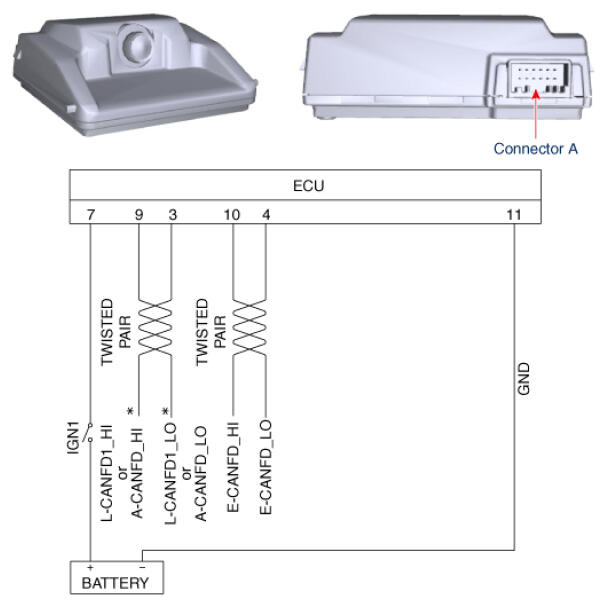

G16877793Courtesy of HYUNDAI MOTOR AMERICA
Connector A Pin NO Description
G16877794Courtesy of HYUNDAI MOTOR AMERICA
 1 -
2 -
3 L-CANFD1 (Low) or A-CANFD (Low)
4 E-CANFD (Low)
5 -
6 -
7 IGN1
8 -
9 L-CANFD1 (High) or A-CANFD (High)
10 E-CANFD (High)
11 Ground
12 -
