Description & Operation: Description

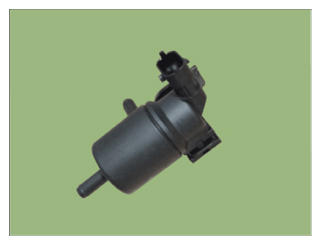

Purge Control Solenoid Valve (PCSV) is installed on the surge tank and controls the passage between the canister and the intake manifold. It is a solenoid valve and is open when the passage is open (PCSV ON), fuel vapor stored in the canister is transferred to the intake manifold.

Courtesy of HYUNDAI MOTOR AMERICA
