Knock Sensor (KS)
>>
Components And Components Location
>>
Knock Sensor (KS) [Bank 2]
Knock Sensor (KS) [Bank 2]

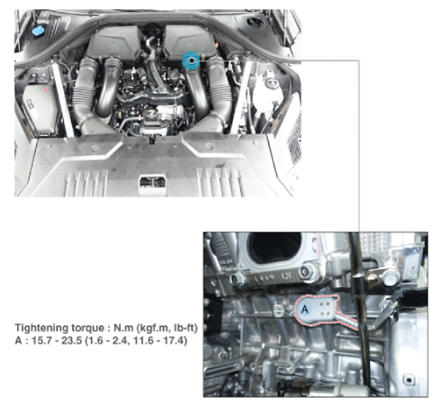

Fig 1: Knock Sensor Components Location With Torque Specification (Bank 2)
Courtesy of HYUNDAI MOTOR AMERICA
Courtesy of HYUNDAI MOTOR AMERICA
