Removal And Installation
WARNING: This page is about a different variant/trim than selected.
- Switch "OFF" the ignition and disconnect the negative (-) battery terminal.
- Remove the luggage side trim [RH]. (Refer to Body - "LUGGAGE SIDE TRIM ")

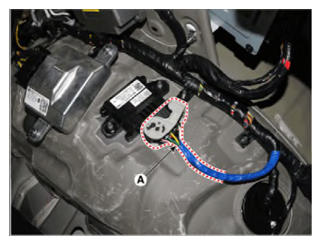

- Disconnect the fuel pump control module connector (A).

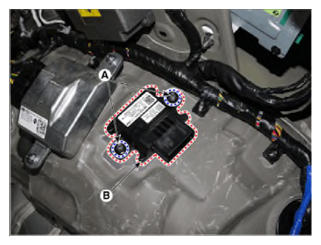

- After loosening the mounting nuts (A), then remove the fuel pump control module (B).
Tightening torque:
3.9 - 5.9 N.m (0.4 - 0.6 kgf.m, 2.9 - 4.3 lb-lt)
- Install in the reverse order of removal.
