Components & Components Location: Components

WARNING: This page is about a different variant/trim than selected.

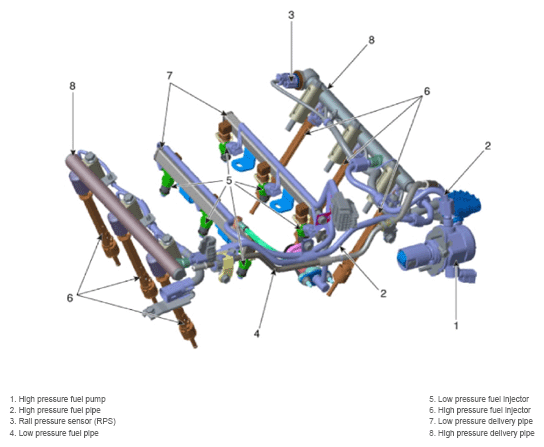

G14766667Courtesy of HYUNDAI MOTOR AMERICA
WARNING:
  • In case of removing the high pressure fuel pump, high pressure fuel pipe, delivery pipe, and injector, there may be injury caused by leakage of the high pressure fuel. So don't do any repair work right after engine stops.
