Parking Release Actuator

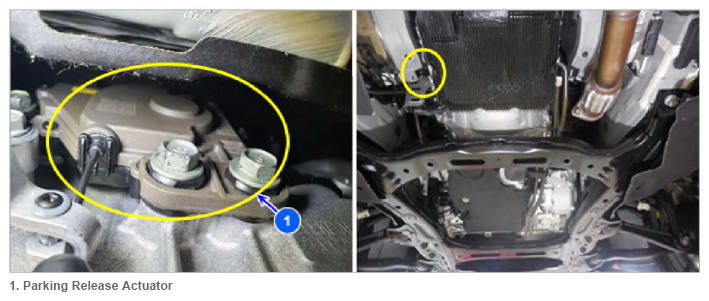

G14737409Courtesy of HYUNDAI MOTOR AMERICA

Recognize the position of the park release actuator motor to locate the park release actuator.

The park release actuator pulls the park release cable to release the park state of the transmission.

The park release actuator gear changes the rotation direction of the internal motor.
