Home >> Genesis >> 2022 >> GV70 2.5T Advanced >> Repair and Diagnosis >> Transmission >> Automatic Trans >> Automatic Transaxle System Diagnosis >> DTC P0881-00: TCM Power Input Signal Range/Performance >> Troubleshooting >> Diagnostic Flowchart

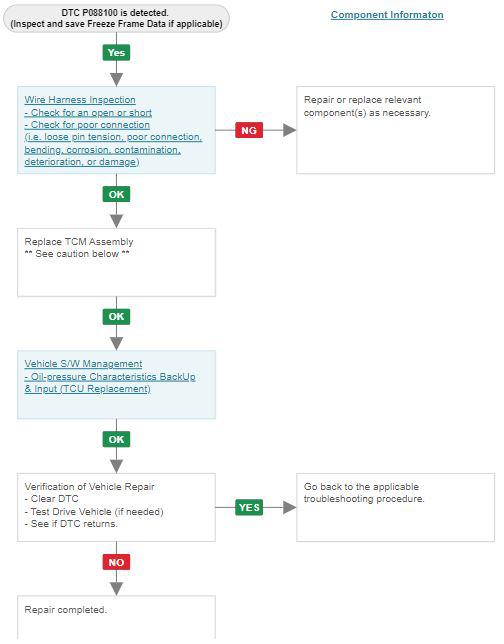

Diagnostic Flowchart

G14737868Courtesy of HYUNDAI MOTOR AMERICA
CAUTION: When the TCM is replaced, make sure to use the S/W Management Menu and perform all learned value options in the Engine and Transmission Sub-Menus.
